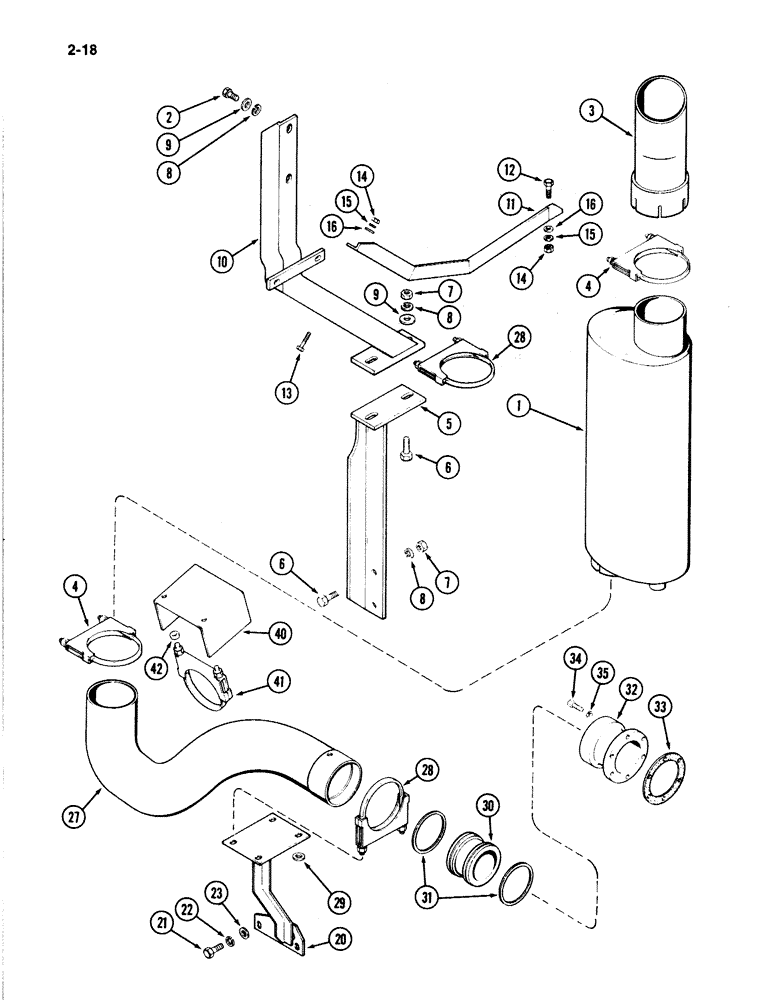

Запчасти Case IH 4894 (2-18) - EXHAUST TUBE AND MUFFLER 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A142751
MUFFLER,W/ Spark Arrester
- exhaust
1шт.
2
113-2447
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
3
A161798
MUFFLER
DEFLECTOR - exhaust
1шт.
4
G142721
PITMAN
- muffler and deflector 5 inch (127 mm)
2шт.
5
A161763
SPINDLE
SUPPORT - muffler, Serial Range: bracket-frame
1шт.
6
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
4шт.
7
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
8
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
9
195-106
WASHER,1/2"
- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)
2шт.
10
A161761
SUPPORT
BRACKET - muffler mounting
1шт.
11
A152465
BRACE
- muffler bracket
1шт.
12
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
13
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
14
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
16
195-104
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)
4шт.
20
A150783
SUPPORT
- exhaust pipe bracket
1шт.
21
814-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
- hex, M12 x 30 mm
2шт.
22
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
23
195-533
WASHER,1/2", SAE
- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)
2шт.
27
A148148
PIPE
- exhaust, Serial Range: turbocharger-muffler
1шт.
28
A142761
- pipe bracket, 5 inch (127 mm)
2шт.
29
195-134
WASHER,3/8"
- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)
4шт.
30
A140857
JOINT
- expansion, Serial Range: pipe-coupling
1шт.
31
A20732
RING,101.78mm ID x 111.13mm OD x 2.37mm Thk
- compression, expansion joint
2шт.
32
A148911
COUPLING
COUPLING - turbocharger exhaust
1шт.
33
A140856
GASKET
- coupling flange
1шт.
34
864-10025
HEX SOC SCREW,M10 x 25mm, Cl 8.8
- cap, hex socket head, 10 x 20 mm
6шт.
35
192-407
LOCK WASHER,7/16"
7/16"
6шт.
40
A152264
GUARD
SHIELD - exhaust heat
1шт.
41
A184592
CLAMP
- shield
1шт.
42
A140435
BUSHING
SPACER -, Serial Range: clamp-shield
2шт.
Выбрано товаров: 32
