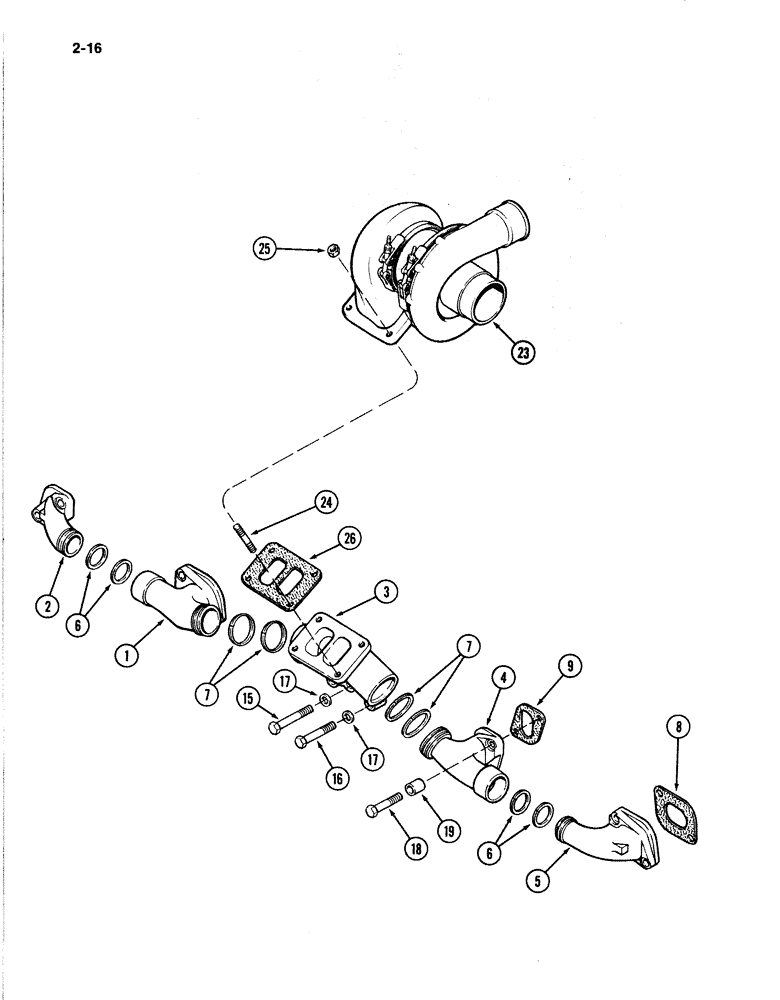

Запчасти Case IH 4894 (2-16) - EXHAUST MANIFOLD 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46363

MANIFOLD

- exhaust, rear center section

1шт.

2

A46377

MANIFOLD

- exhaust, rear section

1шт.

3

A45771

MANIFOLD

- exhaust, intermediate section

1шт.

4

A45773

MANIFOLD

- exhaust, front center section

1шт.

5

A45772

MANIFOLD

- exhaust, front section

1шт.

6

A46440

RING

- compression, front and rear section

4шт.

7

A46389

SEAL

- compression, center and intermediate section

4шт.

8

A46368

MANIFOLD GASKET

- manifold to head (large)

2шт.

9

A46369

MANIFOLD GASKET

- manifold to head (small)

2шт.

15

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

16

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

17

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

4шт.

18

814-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

8шт.

19

A45778

SPACER

- mounting, exhaust manifold

8шт.

23

REF

INSTRUCTION

TURBOCHARGER - engine (See Figure 2-22)

1шт.

24

A45775

STUD

- turbocharger to exhaust manifold

4шт.

25

A46073

NUT

- turbocharger stud

4шт.

26

A46185

MANIFOLD GASKET

-, Serial Range: turbocharger-manifold

1шт.
