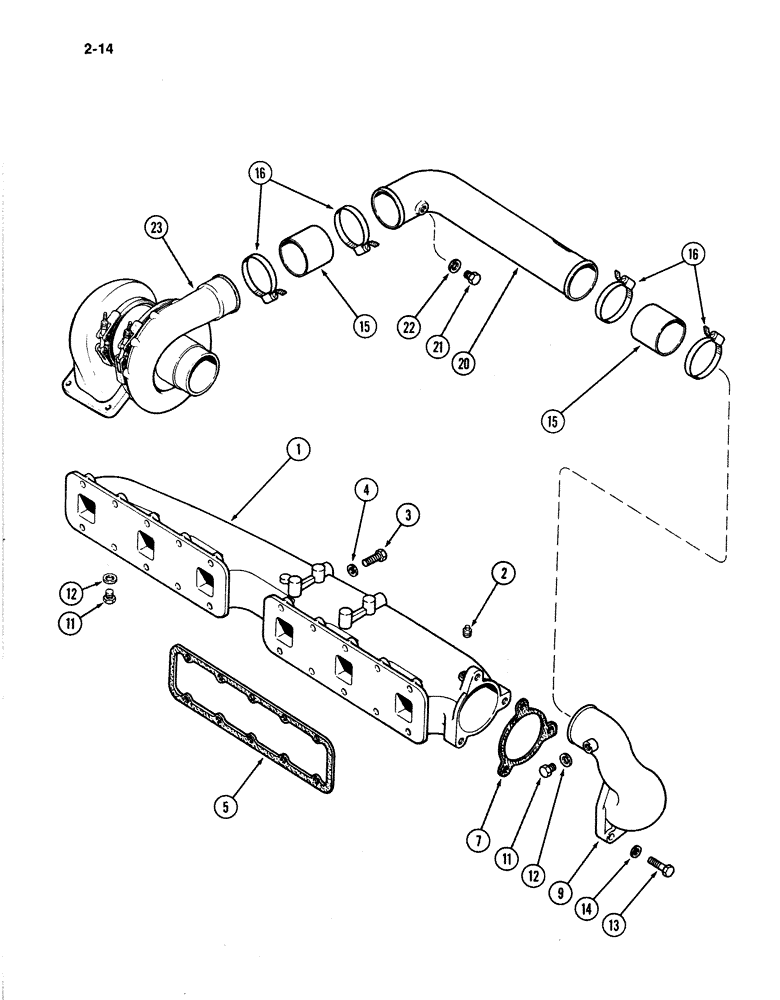

Запчасти Case IH 4894 (2-14) - INTAKE MANIFOLD 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A70650

TUBE ASSY.

MANIFOLD - intake

1шт.

2

A46722

PLUG

- intake manifold

1шт.

3

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

20шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

20шт.

5

A46360

GASKET

- intake, Serial Range: manifold-head

2шт.

7

A46613

GASKET

-, Serial Range: elbow-manifold

1шт.

9

A46532

FITTING

ELBOW - intake to turbocharger tube

1шт.

11

A46691

PLUG

- elbow, M12

2шт.

12

A45788

SEALING WASHER

- plug

2шт.

13

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

3шт.

14

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.

15

A46881

INTAKE AIR HOSE

- Intake, Serial Range: tube-turbocharger

2шт.

16

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4 inch (71 to 95 mm)

4шт.

20

A45787

TUBE

- turbocharger

1шт.

21

A46469

PLUG

- tube, M14

1шт.

22

A45766

GASKET

WASHER - plug

1шт.

23

REF

INSTRUCTION

TURBOCHARGER - engine (See Figure 2-22)

1шт.
