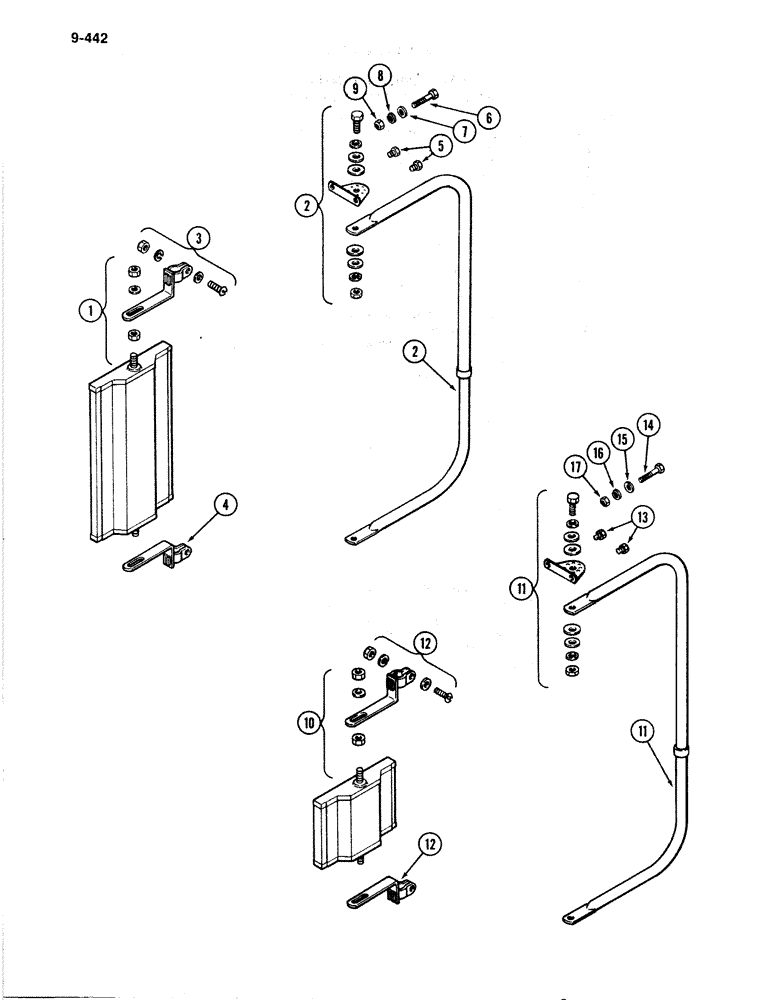

Запчасти Case IH 4894 (9-442) - MIRROR ATTACHMENTS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- mirror, (Chrome) (Order A177935), Includes: Ref. 1 - 9

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - dual vision (Order A61895), Includes: Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vison

1шт.

2

A42764

BRACKET

ASSEMBLY - mirror swing away

1шт.

3

A42766

ADAPTER

ASSEMBLY - mirror bracket (small) (Order A42767)

1шт.

4

A42767

ADAPTER

ASSEMBLY - mirror bracket (large)

1шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - hex self tapping, 1/4 x 3/8 inch

4шт.

6

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch (R.H. window)

4шт.

7

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

A177935

MIRROR

ASSEMBLY - side (Black), 4 x 6 convex, Includes: Ref. 5 - 9

1шт.

NSS

NOT SOLD SEPARAT

MIRROR - dual vision (Order A177935), 4 x 6 convex

1шт.

5

187-1922

SCREW

- indented hex washer head, 1/4-20 x 3/8 inch, 4 x 6 convex

4шт.

6

113-76

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch, 4 x 6 convex

4шт.

7

192-83

LOCK WASHER,1/4"

WASHER, LOCK, , 4 x 6 convex 1/4"

4шт.

8

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm), 4 x 6 convex

4шт.

9

129-119

NUT,1/4"-20, G5

4 x 6 convex 1/4"-20, G5

4шт.

A61897

KIT

ATTACHMENT - mirror (Chrome), 4 x 6 convex, Includes: Ref. 10 - 17

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - 4 x 6 convex (Order A61897)

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

ASSEMBLY - mirror swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - hex self tapping, 1/4 x 3/8 inch self tapping, 4 x 6 convex

4шт.

14

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch (R.H. window), 4 x 6 convex

4шт.

15

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm), 4 x 6 convex

4шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , 4 x 6 convex 1/4"

4шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, 4 x 6 convex

4шт.
