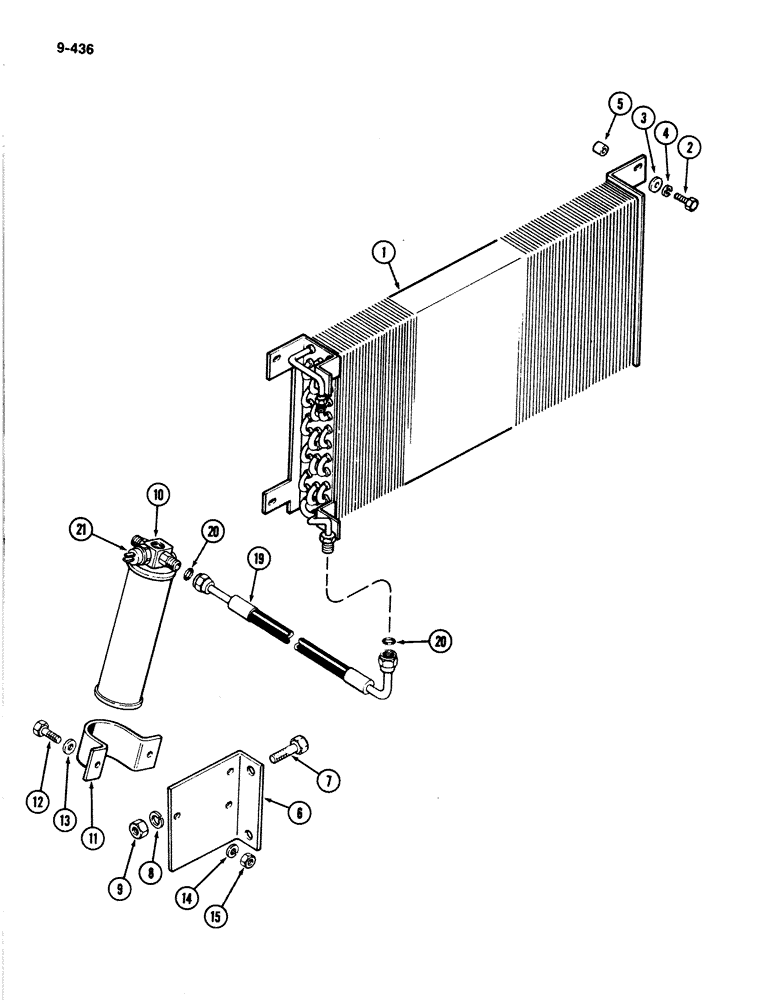

Запчасти Case IH 4894 (9-436) - AIR CONDITIONING, CONDENSOR AND RECEIVER - DRIER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A152071

CONDENSER

- air conditioning

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A37418

SPACER

- condenser mounting

4шт.

6

A152072

BRACKET

- mounting, receiver-drier

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A76312

RECEIVER-DRYER

DRIER - receiver

1шт.

11

A76313

CLAMP

-, Serial Range: receiver-drier-bracket

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

(9 x 17 x 2 mm) 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

A151071

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

20

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16 inch (8 x 11 x 2 mm)

2шт.

21

A47717

SWITCH

- low pressure

1шт.
