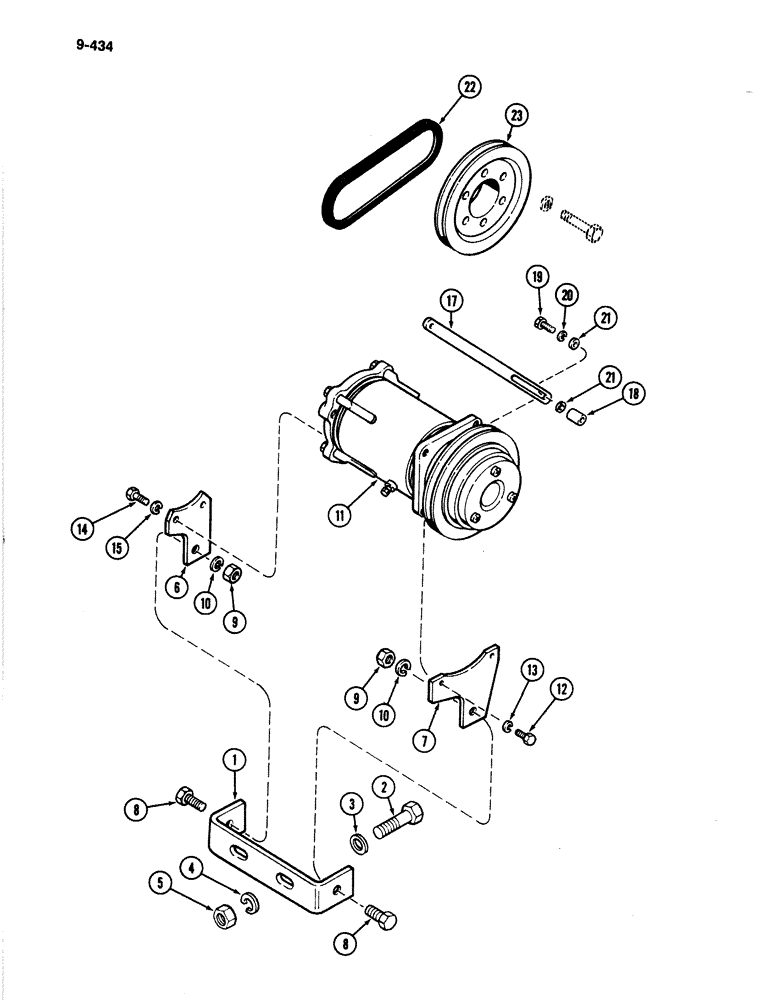

Запчасти Case IH 4894 (9-434) - AIR CONDITIONING, AIR COMPRESSOR MOUNTING) (09) - CHASSIS/ATTACHMENTS

1

A138770

BRACKET

- support, Serial Range: compressor-frame

1шт.

2

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

3

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

129-107

NUT,5/8"-11, G5

2шт.

6

A138762

BRACKET

- rear support, compressor

1шт.

7

A138763

BRACKET

- front support, compressor

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - (See Figure 9-440)

1шт.

12

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 1.25 x 25 mm

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

A59098

STRAP

- adjusting, compressor belt

1шт.

18

T34922

BUSHING

SPACER -, Serial Range: strap-compressor

1шт.

19

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 x 1.25 x 45 mm hex

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

1шт.

22

A138760

V-BELT,0.50" W

Compressor Drive 0.50" W

1шт.

23

REF

INSTRUCTION

PULLEY - crankshaft, compressor drive (See Figure 2-38)

1шт.
