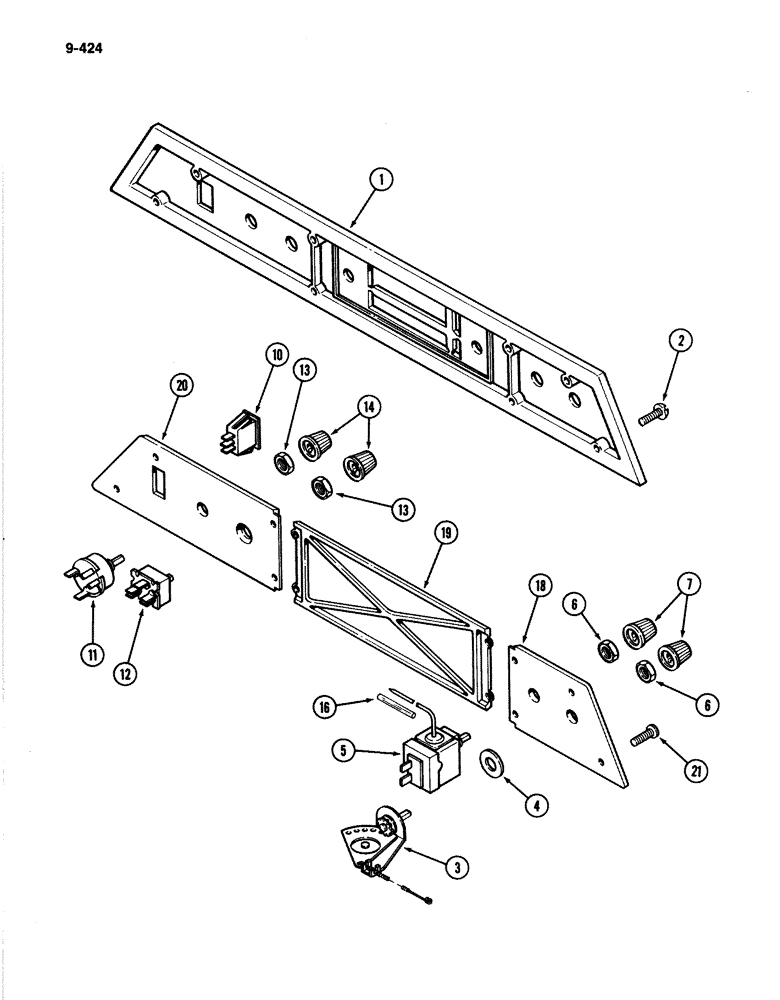

Запчасти Case IH 4894 (9-424) - CAB CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

F64629

PANEL ASSY.

PANEL - headliner control (prior to Cab Serial No. 12097787)

1шт.

2

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - pan head slotted, No. 10-16 x 3/4 inch

8шт.

3

F64666

CONTROL,1503.68mm L

- heater

1шт.

4

195-529

WASHER,7/16", SAE

- flat, 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

1шт.

5

L73646

SWITCH

- air conditioning

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

7

F64891

KNOB

- control

2шт.

10

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

11

F43359

SWITCH

- wiper

1шт.

12

A42622

SWITCH

- blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

14

F64891

KNOB

- control

2шт.

16

F63719

TUBE

- nylon, 1/8 ID x 12 inch length

1шт.

18

F66128

BEZEL

PANEL - control, front

1шт.

19

F66128

BEZEL

PANEL - control, center

1шт.

20

F66139

BEZEL

PANEL - control, rear

1шт.

Ref. #18, #19, & #20 - 3 piece panel replaces these panels when purchasing new Audiovox Radio, See Figure 116 for new Radios & Panels

1шт.

21

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head Phillips, No. 10-16 x 3/4 inch

8шт.
