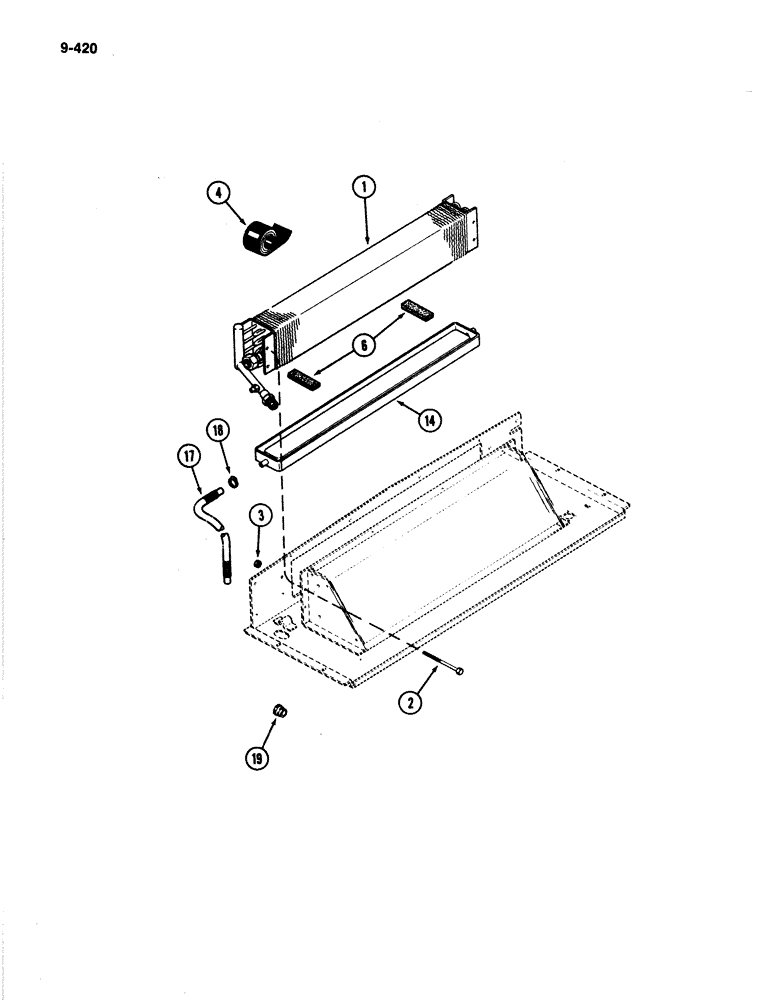

Запчасти Case IH 4894 (9-420) - CAB AIR CONDITIONING EVAPORATOR (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioning

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

4

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/8 inch (64 x 305 x 3 mm)

1шт.

6

F63670

SEAL

- pan to core, 1 x 3-1/2 x 1/4 inch (25 x 89 x 6 mm)

2шт.

14

F64487

PAN

- condensation

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - drain, 90 inch (2286 mm) long (Order F64508)

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- (cut to length) 0.43" ID x 100' Bulk

1шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

No. 18 SAE

2шт.

19

F64504

BUSHING

- snap, hose

2шт.
