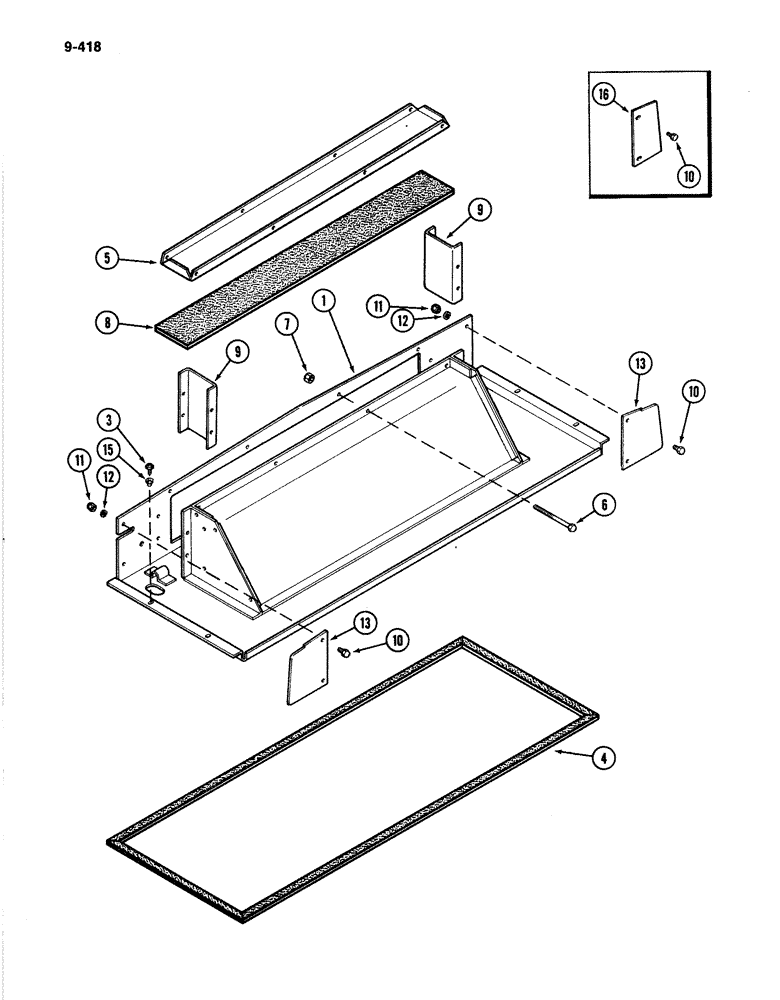

Запчасти Case IH 4894 (9-418) - CAB PLENUM (09) - CHASSIS/ATTACHMENTS

1

F98278

TUBE

PASSAGE - air

1шт.

3

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - washer head

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - duct floor, 111-1/2 inch (2 832 mm) long (Order F64119) (Reference No. F64736)

2шт.

F64119

SEALING STRIP

- seal, 100 foot (30 M) roll, Serial Range: (Cut-length)

1шт.

5

F63841

COVER

- top, air passage

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

8шт.

8

F63671

SEAL

- top cover

1шт.

9

F64013

PLATE ASSY.

PLATE - filler (without air conditioning)

2шт.

10

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex, 1/4 NC x 3/4 inch

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

F63614

PLATE ASSY.

PLATE - end, air passage

2шт.

15

F44834

BUSHING

- expansion, nylon

4шт.

16

A177983

PLATE - end, air passage (Not North America)

1шт.
