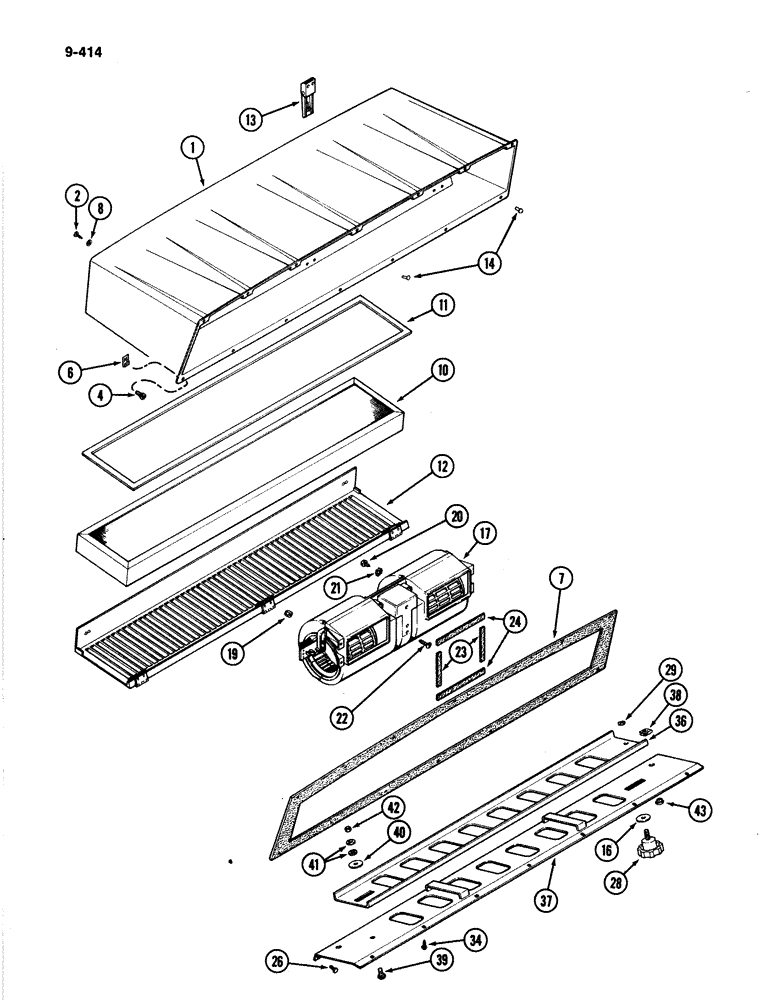

Запчасти Case IH 4894 (9-414) - CAB AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F64721

HOUSING

- filter and blower

1шт.

2

187-1913

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - indented hex washer head, No. 10-16 x 1 inch special

5шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, self tapping No. 10-16 x 3/4 inch

2шт.

4

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- hex head, No. 10-24 x 3/4 inch

7шт.

6

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- No. 10-24 J type

7шт.

7

F64602

SEAL

SEAL -, Serial Range: housing-cab

1шт.

8

195-404

SEALING WASHER

WASHER - sealing, No. 10

7шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F63669

SEAL

-, Serial Range: filter-housing

1шт.

12

F98302

COVER

ASSEMBLY - filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8 inch

10шт.

16

F64867

WASHER

- door plate

1шт.

17

REF

INSTRUCTION

BLOWER - cab air (See Figure 9-416)

1шт.

19

F45165

SPECIAL NUT,#10-24

NUT - hex, No. 10 NC

4шт.

20

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - slotted Hex, No. 10 x 1/2 inch

2шт.

21

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - shakeproof lock, No. 10

1шт.

22

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, No. 8 x 3/4 inch

1шт.

23

F64818

SEALING STRIP

SEAL - blower (Order F64119)

4шт.

24

F64817

SEALING STRIP

SEAL - blower (Order F64119)

4шт.

26

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex head self tapping, No. 10-16 x 1/2 inch

7шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

34

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - hex slotted, No. 10-16 x 1 inch

8шт.

F98332

DOOR

ASSEMBLY - recirculation (Replaces F64744 and F98175, Prior to Cab Serial No. 12097787), Includes: Ref. 36 - 43

1шт.

36

F64930

DOOR

- recirculation

1шт.

37

F64933

PLATE

- door

1шт.

38

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- speed, U Type

1шт.

39

111-265

BOLT

- carriage, 5/16 NC x 3/4 inch

1шт.

40

F64867

WASHER

- door bolt

1шт.

41

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

43

353-404

PLUG,Dome, .500" hole, Nylon

Heyco Dome, .500" hole, Nylon

1шт.
