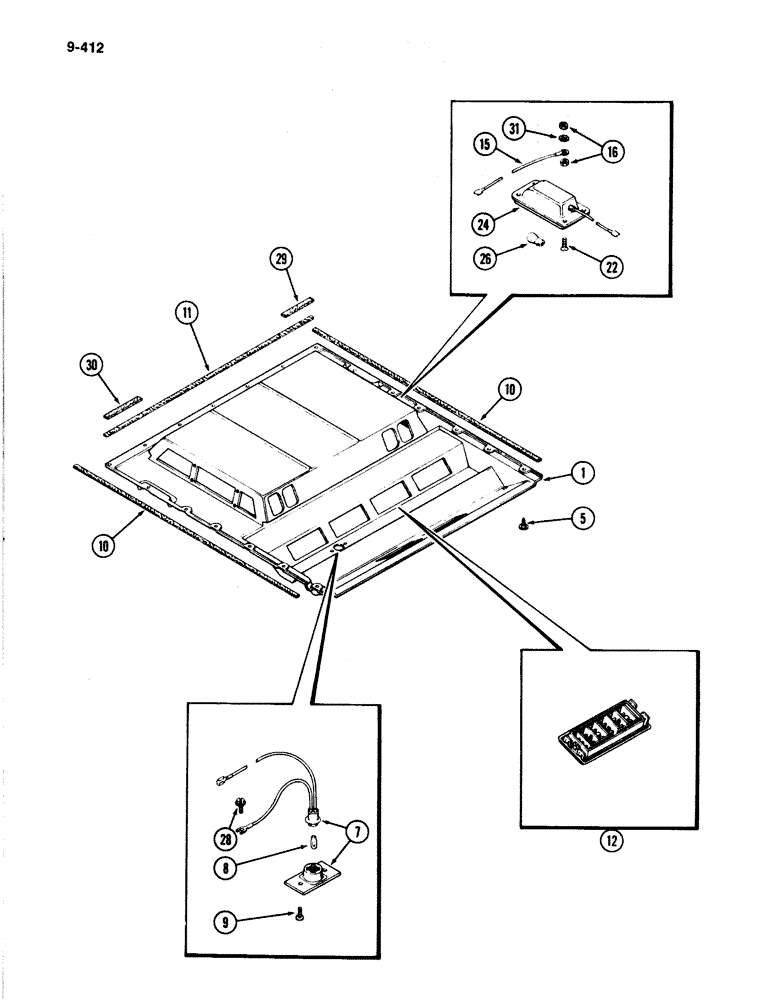

Запчасти Case IH 4894 (9-412) - CAB HEADLINER AND LOUVERS (09) - CHASSIS/ATTACHMENTS

1

F97369

ROOF

HEADLINER - cab

1шт.

Reference numbers in description are for CARES use only and can not be ordered separately

1шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - Phillips special, No. 10-16 x 3/4 inch

12шт.

7

F98279

INTERIOR LIGHT

LAMP ASSEMBLY - courtesy, Includes: Ref. 8

1шт.

8

W10478

LAMP

BULB - lamp, No. 194

1шт.

9

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - Phillips self tapping, No. 10-16 x 3/4 inch

2шт.

Reference numbers in description are for CARES use only and can not be ordered separately

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - headliner, side (Order F64119) (Reference No. F64735)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - headliner, rear (Reference No. F64792)

1шт.

12

L109555

GUARD

LOUVER - air deflection, rectangle

6шт.

15

F64731

CABLE PULLING GRIP

WIRE - dome light

1шт.

16

129-16

NUT,#8-32

5шт.

22

171-238

SCREW,Sl Flat Hd, #8 - 32 x 5/8"

- flat head slotted, No. 8-32 x 5/8 inch

4шт.

24

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 26

1шт.

26

B50217

BULB

- lamp, GE No. 93 or Guide Lamp 142454

1шт.

29

F64854

SEAL - foam, 6 inch (152 mm) (Order D70611)

1шт.

30

F64855

SEAL - foam, 7 inch (178 mm) (Order D70611)

4шт.

31

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

1шт.

Reference numbers in description are for CARES use only and can not be ordered separately

1шт.

F64119

SEALING STRIP

SEAL - headliner, 100 foot roll (33 m) (Cut to desired length)

1шт.
