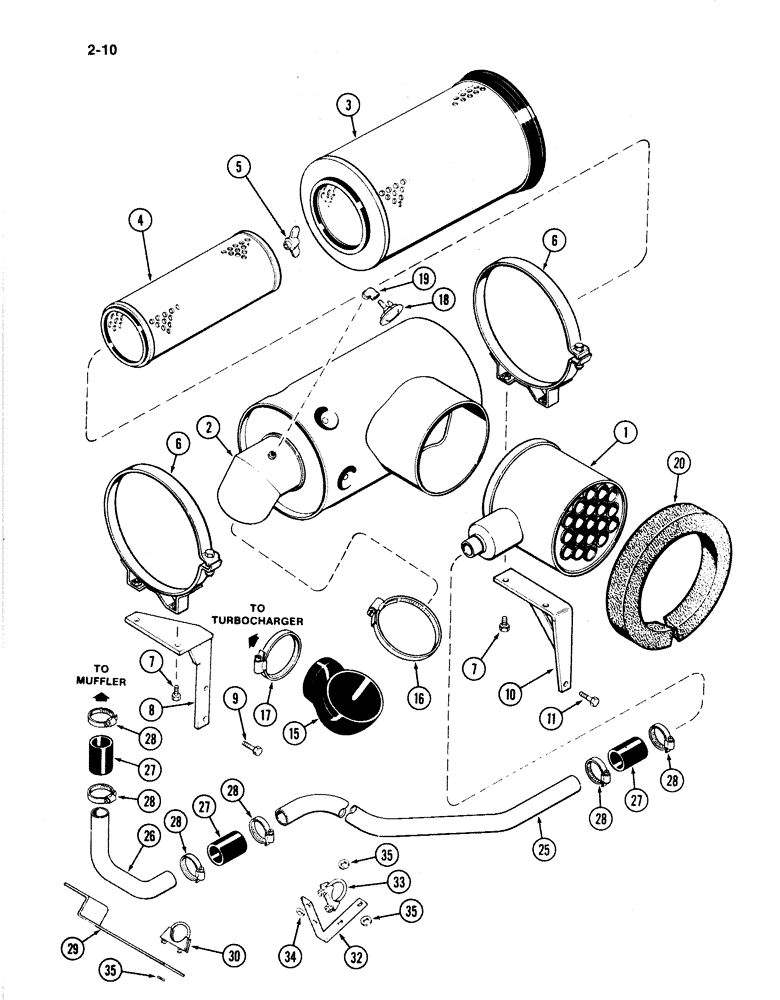

Запчасти Case IH 4894 (2-10) - AIR INDUCTION SYSTEM 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A142579

CLEANER

PRE-CLEANER ASSEMBLY - engine (Includes clamp assembly)

1шт.

A146326

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 2 - 4

1шт.

OUTER ELEMENT FOR ASM=A45694. INNER ELEMENT FOR ASM=IS A45695. B/P ON A45694 SHOWS A WINGNUT, BUT AFTER CONVERSATION W/DONALDSON, THE WINGNUT AND STAR SHAPE RETAINER DO NOT COME WITH THIS OUTER ELEMENT ANY LONGER, AS B/P INDICATES.(ONLY W/CPT. FILTER) PER VENDOR, USE WING NUT 47143 AND RETAINER 1347879C1 W/A45694 AND WING NUT F91761 FOR A45695,INNER ELEMENT.

1шт.

IF DEALER LOOKING FOR FILTER THAT INCLUDES THE WING NUT HE

1шт.

CAN ORDER FROM FLEETGUARD, PART # AF4628M.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A146326)

1шт.

3

A45694

AIR CLEANER

ELEMENT - outer

1шт.

3a

A47143

NUT

Wing

1шт.

4

A45695

AIR CLEANER

ELEMENT - inner

1шт.

5

D78354

WING NUT

NUT - element retainer

1шт.

6

A138724

CLAMP

ASSEMBLY - mounting (Includes bolt and nut)

2шт.

7

113-298

BOLT,Locking, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

8

A138725

BRACKET

- mounting, air, Serial Range: cleaner-head

1шт.

9

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

10

A165451

BRACKET

- mounting, air, Serial Range: cleaner-manifold

1шт.

11

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

15

A169387

TUBE

HOSE - connector, air, Serial Range: cleaner-turbocharger

1шт.

16

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, 3-9/16 to 4-1/2 inch (90 mm to 114 mm)

1шт.

18

A154782

SWITCH

- sender, air restriction

1шт.

19

221-1385

ELBOW

- 45 degree pipe, 1/8 inch PT

1шт.

20

A166721

SEAL

- pre-cleaner, 2 square x 38 inch (51 x 965 mm)

1шт.

25

A152024

TUBE

- aspirator (at pre-cleaner)

1шт.

26

A148146

TUBE

- aspirator (at muffler)

1шт.

27

A29928

HOSE,1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

RADIATOR HOSE, , Coupling, Aspirator Tube 1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

3шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 x 57 mm), aspirator tube #28, 1.31/2.25 Type F Worm

6шт.

29

A148210

SUPPORT

- aspirator tube

1шт.

30

L13452

CLAMP,195-3/8" L

ASSEMBLY - aspirator tube to support

1шт.

32

A161136

BRACKET

- aspirator tube support

1шт.

33

A152446

CLAMP

- tube, aspirator

1шт.

34

195-135

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 1/16 inch (10 x 22 x 2 mm), aspirator tube

2шт.

35

195-522

WASHER,5/16"

- flat, 3/8 x 3/4 x 1/16 inch (10 x 19 x 2 mm), aspirator tube

4шт.
