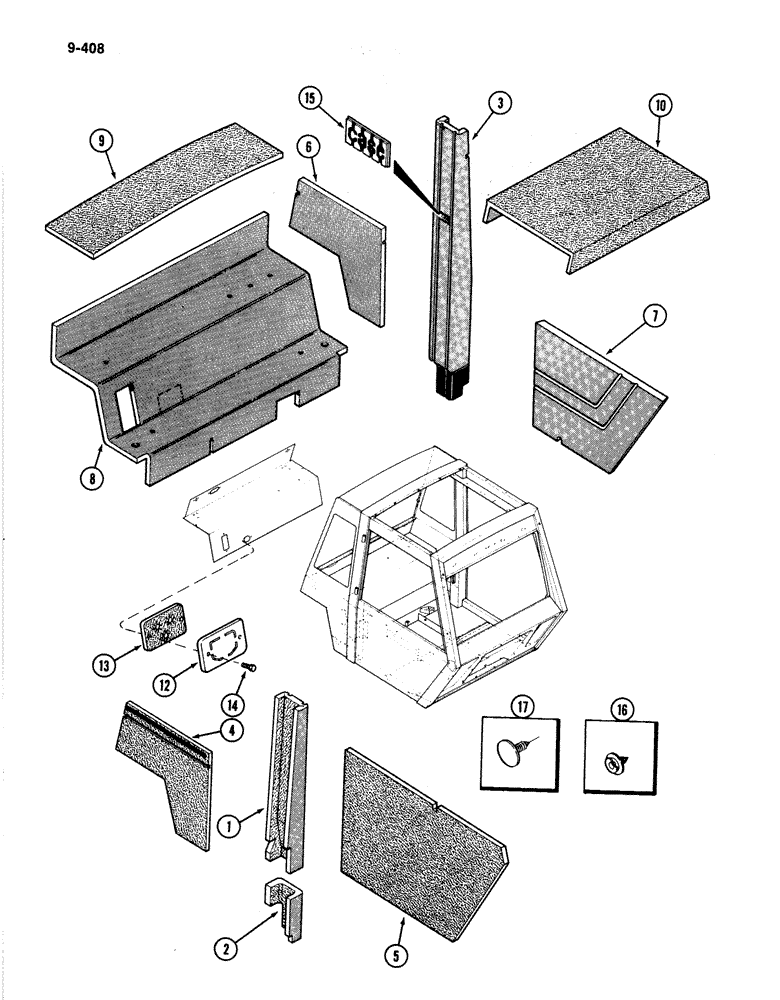

Запчасти Case IH 4894 (9-408) - CAB ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

F66072

COVER

- upper, right roll bar (Replaces F64810) (Includes Ref. 15)

1шт.

2

F66074

COVER

- lower, right roll bar (Replaces A64812)

1шт.

3

F66073

COVER

- left roll bar (Replaces A64811) (Includes Ref. 15)

1шт.

4

F66070

COVER

REAR - right panel (Replaces F64809)

1шт.

5

F66076

COVER

- front, right panel (Replaces 64807)

1шт.

6

F66071

COVER

- rear, left panel (Replaces F64808)

1шт.

7

F66085

PADDING

COVER - door panel (Replaces F64813)

1шт.

8

F66069

COVER

- rear (Replaces F64806)

1шт.

9

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

10

F66137

PAD

Pat - headliner (Replaces F64782)

1шт.

12

F64989

COVER ASSY

COVER - air/oil port

1шт.

13

F66075

SEAL

- port (Replaces F64958)

1шт.

14

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

15

A177741

SYMBOLS

LOGO - Case

2шт.

16

F66031

CLIP

- tree, 1/4 inch

9шт.

17

A166346

FASTENER

- cover

2шт.
