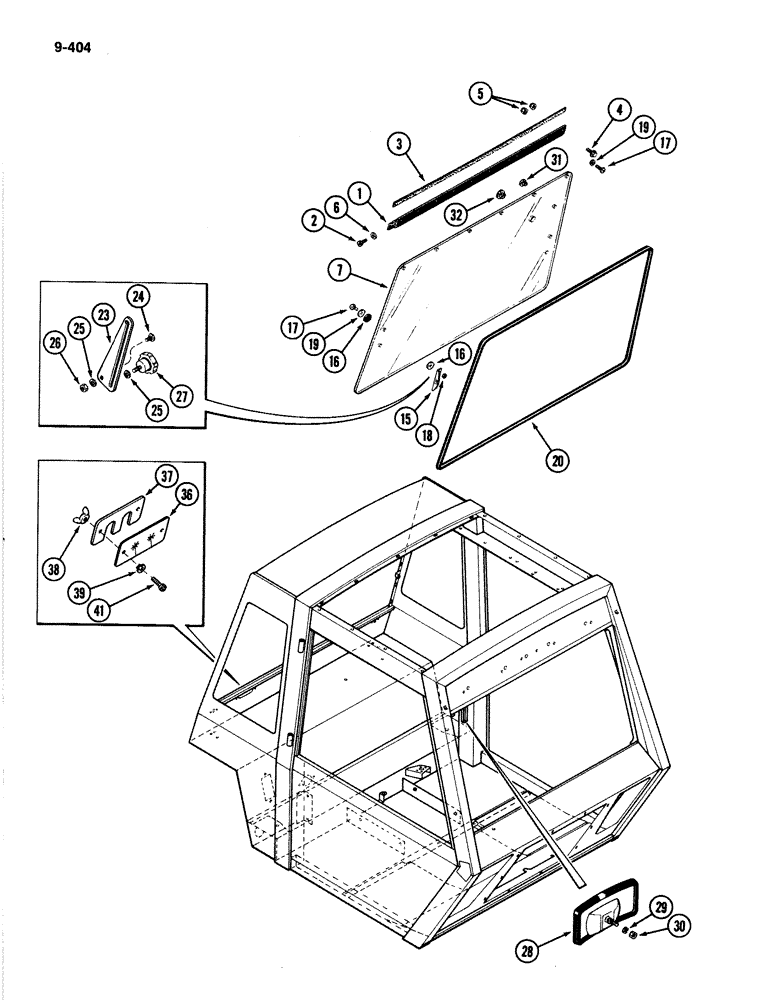

Запчасти Case IH 4894 (9-404) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F66132

HINGE

ASSEMBLY - cab (Replaces F64640)

1шт.

2

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - slotted hex, No. 8 x 1/2 inch special

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - hinge (Order F64119) (Reference No. F64679)

1шт.

F64119

SEALING STRIP

SEAL - strip, 100 foot (33 m) roll (Cut to required length)

1шт.

4

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- washer hex head, No. 10 - 24 x 1/2 inch

10шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex, No. 10 special

10шт.

6

195-513

WASHER,#10

- flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 mm)

4шт.

7

F66088

WINDOW

GLASS - window (Replaces F64788)

1шт.

8

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- oval head, No. 10-24 x 3/4 inch

6шт.

15

F66004

CLEVIS PIN

BRACKET - regulator arm (Replaces F64138)

2шт.

16

F45315

WASHER

- shoulder (Replaces F64140)

20шт.

17

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- oval head, No. 10-24 x 1 inch

10шт.

18

F45165

SPECIAL NUT,#10-24

NUT - hex, No. 10-24 special

12шт.

19

195-2208

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/ 16 x 1/16 inch

10шт.

20

F64677

SEAL

SEAL - window

1шт.

23

F64779

REGULATOR

ARM - regulator, window opening

2шт.

24

111-267

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

25

195-130

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

4шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator

2шт.

28

A177462

MIRROR

ASSEMBLY - rear view, inside (Replaces F64550), Includes: Ref. 29 - 32

1шт.

29

192-30

WASHER - lock, 5/16 inch

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

1шт.

31

F66089

PLUG

- window, small

1шт.

32

F66090

PLUG

- window, large

1шт.

A167146

PACKAGE

ATTACHMENT - rear monitor (Machinery Item), Includes: Ref. 36 - 41

1шт.

36

A165354

SEAL

- window, rear monitor attachment

2шт.

37

A165352

PLATE

- window seal, rear monitor attachment

1шт.

38

129-500

WING NUT,#10-32

NUT - wing, No. 10-24, rear monitor attachment

2шт.

39

A165523

FASTENER

- flat tinnerman, No. 10-24, rear monitor attachment

2шт.

41

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- Phillips oval head, No. 10-24 x 3/4 inch, rear monitor attachment

2шт.
