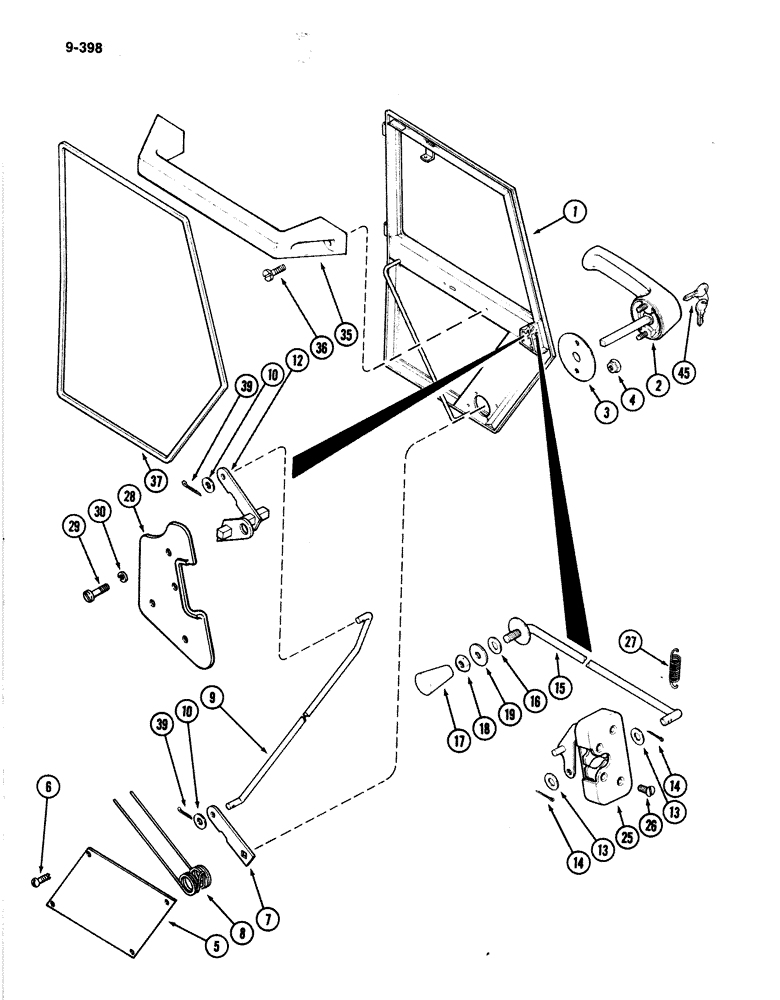

Запчасти Case IH 4894 (9-398) - CAB DOOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

F97341

DOOR

ASSEMBLY - cab, complete (Replaces F97067), Includes: Ref. 1 - 37

1шт.

Order glass from figure 9-406

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Reference No. F97340)

1шт.

2

F66159

HANDLE - outer (Service Order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F98276

PLATE

- access

1шт.

6

187-1904

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 x 1/2 inch

4шт.

7

F64289

ARM

- pull rod

1шт.

8

F64431

SPRING

- pull rod

1шт.

9

F64293

ROD

- pull, door latch lower

1шт.

10

F64384

WASHER

- thrust

2шт.

12

F98228

ARM

- rotary latch

1шт.

13

F64384

WASHER

- thrust

2шт.

14

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

15

F98226

ROD

- pull, door latch upper

1шт.

16

F64384

WASHER

- thrust

1шт.

17

F64341

KNOB

- pull

1шт.

18

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

19

F64340

WASHER

- shoulder

1шт.

25

F66155

LATCH

- rotary (Replaces F64296)

1шт.

26

F45337

SCREW,1/4" - 20 x 1", Gr 5

- latch cover

4шт.

27

F45162

SPRING

- extension

1шт.

28

F66086

COVER ASSY

COVER - latch (Replaces F98275 and F64264)

1шт.

29

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- Phillips pan head, 1/2 - 20 NC x 1/2 inch

4шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, internal/external Shakeproof, 1/4 inch

4шт.

35

F64890

HANDLE

- door pull

1шт.

36

182-536

SCREW

- Phillips pan head, 1/4 NC x 3/4 inch

2шт.

37

F64881

SEAL - weather, 181 Inch (4587 mm) long (Order F64775)

1шт.

F66085

PADDING

- acoustical (See Figure 9-408)

1шт.

Ref #37 - Also uses (16) R52631 Clips

1шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

45

A77313

SET OF 2 KEYS

KEYS - door lock, set Of 2 (Used for Starting also)

1шт.
