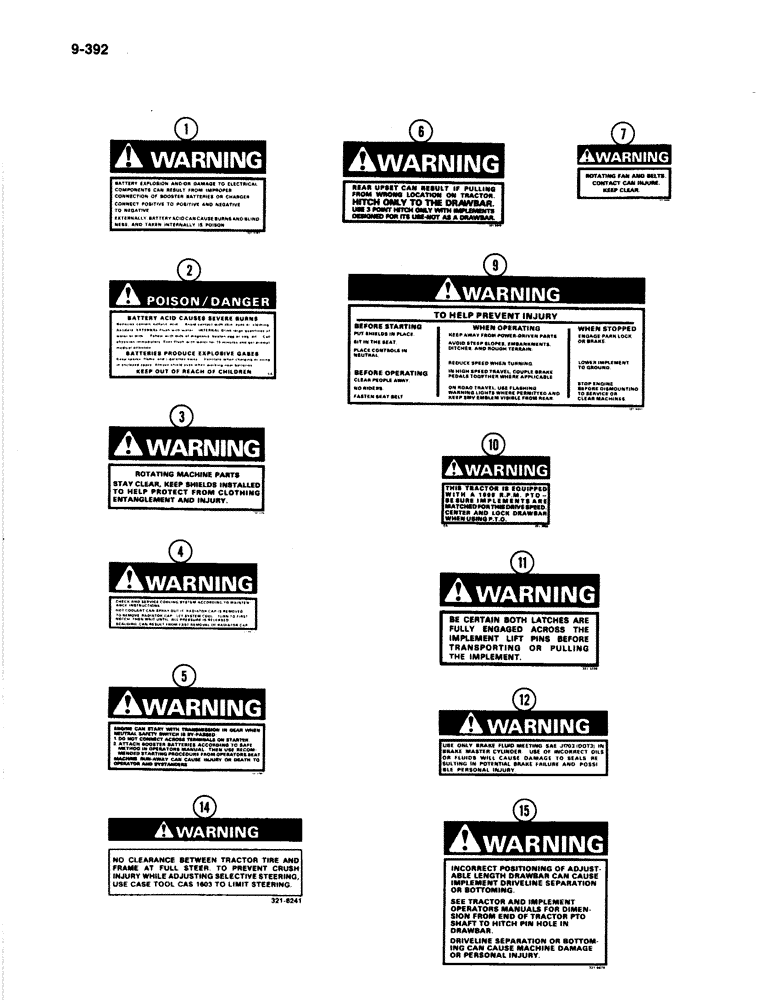

Запчасти Case IH 4894 (9-392) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67597

DECAL

KIT - safety decals, Includes: Ref. 1 - 10

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

1

321-3707

DECAL

- booster cable warning (On side plate)

2шт.

2

321-2996

DECAL

- poison danger (On side plate)

2шт.

3

321-3710

DECAL

- rotating parts (On, Serial Range: PTO-shield)

1шт.

4

321-6672

DECAL

- radiator cap (On top of radiator)

1шт.

5

321-3709

DECAL

- starting motor (On right side plate)

1шт.

6

321-3845

DECAL

- drawbar (On rockshaft)

1шт.

7

321-6641

DECAL

- operating procedure (Inside of door)

1шт.

10

321-3900

DECAL

- 1000 RPM PTO (On control console) (Not this application)

1шт.

11

321-3339

DECAL

- warning, latch across implement

2шт.

12

321-6673

DECAL

- DOT 3 brake fluid only (Above master cylinder)

1шт.

14

321-6241

DECAL

- warning (Steering Limit)

1шт.

15

321-6678

DECAL

- warning, drawbar

1шт.

A46559

DECAL

KIT - French language, Includes: Ref. 1 - 11

1шт.

Kit also includes decals listed on Figure 9-392.

1шт.

1

321-5582

DECAL

- booster cable warning, French language

2шт.

2

321-5531

DECAL

- danger poison (On side plates), French language

2шт.

3

321-6647

DECAL

- rotating parts (On PTO shield), French language

1шт.

4

321-6701

DECAL

- radiator cap, French language

1шт.

5

321-5581

DECAL

- starting motor, French language

1шт.

7

321-5604

DECAL

- fan warning, French language

2шт.

10

321-5790

DECAL

- warning, implement lift, French language

1шт.

11

321-5580

DECAL

- warning, latch across implement, French language

1шт.

321-5619

DECAL

- operating instructions, French language

1шт.

321-5583

DECAL

- operating instructions, French language

1шт.

321-5735

DECAL

- ROPS, French language

1шт.
