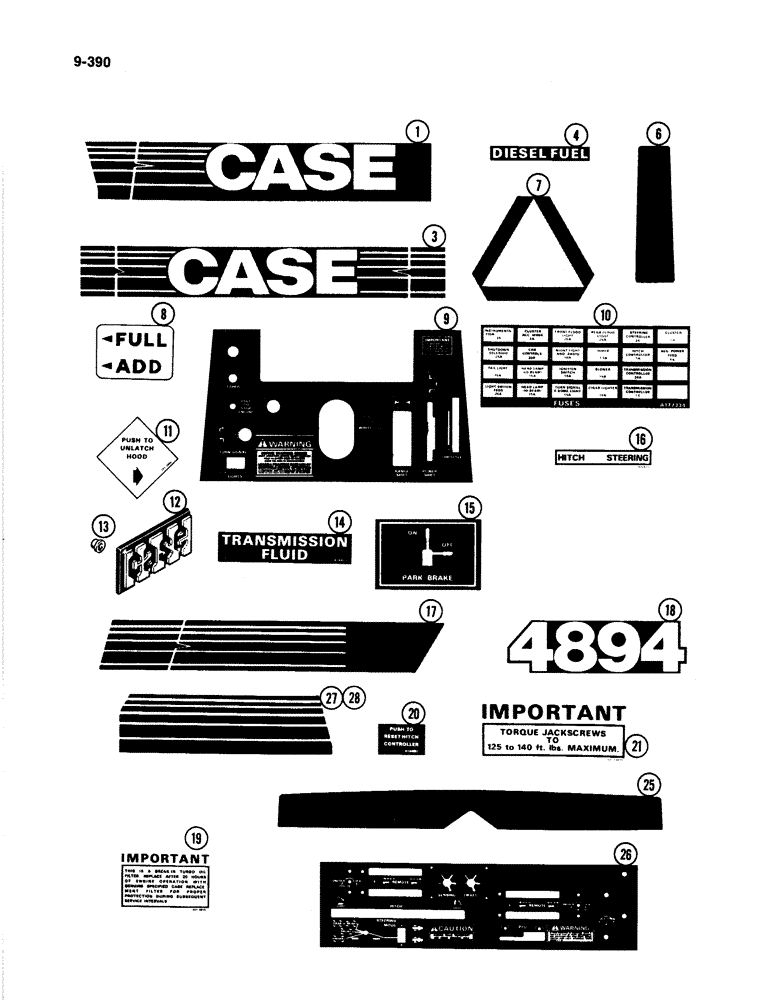

Запчасти Case IH 4894 (9-390) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

A67596

DECAL

KIT - Tractor, Includes: Ref. 1 - 17

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals, Ref. 18 - 20, 25 and 26.

1шт.

1

A169044

DECAL

- right hood side

1шт.

1

A169043

DECAL

- left hood side (Right Shown)

1шт.

3

A169061

DECAL

- CASE, cab rear

1шт.

4

321-2601

DECAL

- diesel fuel (fuel tank filler)

2шт.

6

321-4147

DECAL

- hood sight

1шт.

7

A163604

DECAL

- SMV

1шт.

8

321-2470

DECAL

- transmission oil level

1шт.

9

A176024

DECAL

- instrument panel

1шт.

10

A177334

DECAL

- fuse location (Replaces A164371)

1шт.

11

321-3985

DECAL

- hood latch unlock

1шт.

12

321-4739

EMBLEM

MEDALLION - front grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch

2шт.

14

A169070

DECAL

- transmission fluid (on transmission fill tube)

1шт.

15

A167686

FOAM

DECAL - parking brake (on parking brake switch cover)

1шт.

16

A164212

DECAL

- hitch and steering (on console support bracket)

1шт.

17

A169056

DECAL

- cab, right

1шт.

17

A169057

DECAL

- cab, left (Right shown)

1шт.

18

A169055

DECAL

- 4894, side of cab, (White Painted Tractor)

2шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

18

A181521

DECAL

- 4894, side of cab, (Red Painted Tractor)

2шт.

19

321-3915

DECAL

- turbocharger oil filter

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

20

A164557

DECAL

- hitch reset (on console)

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

21

321-6432

DECAL

- power adjust jackscrew (Row Crop Tires only)

8шт.

25

321-6446

DECAL

- cab roof, front (Replaces 321-6646)

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

26

A176079

DECAL

- operator console

1шт.

For complete tractor, order (1) A67596 tractor kit and (1) A67597 safety kit and decals

1шт.

27

A169050

DECAL

- rear hood, right

1шт.

28

A169049

DECAL

- rear hood, left (Right shown)

1шт.

A46559

DECAL

KIT - French language, Includes: Ref. 4, 10 and road speed decal

1шт.

Kit also includes decals listed on Figure 9-393.

1шт.

4

321-5793

DECAL

- Diesel Fuel only, French language

2шт.

10

A169080

DECAL

- fuse location, French language

1шт.

321-5536

DECAL

- road speed, French language

1шт.
