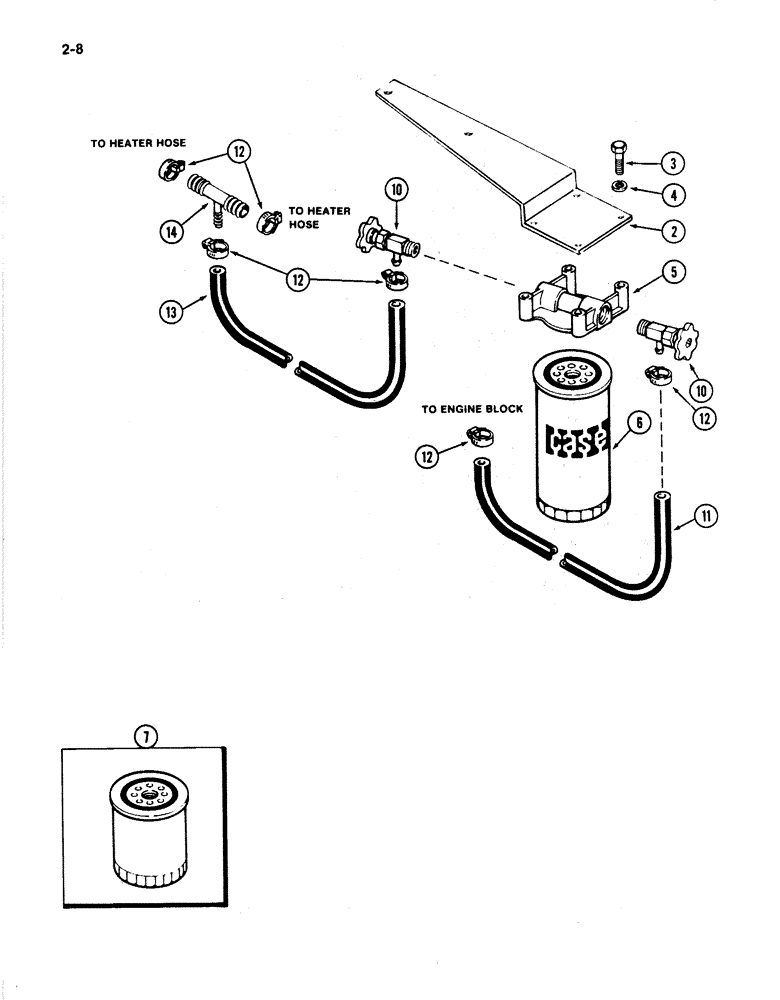

Запчасти Case IH 4894 (2-08) - WATER FILTER 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A67540

KIT

- water filter, Includes: Ref. 2 - 14

1шт.

2

A166435

KIT

BRACKET - water filler

1шт.

3

113-616

BOLT

- hex, 3/8 NC x 1 inch

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A152821

HEAD

- filter

1шт.

6

A152819

FILTER

ELEMENT - water, charged, 7-1/2 inch long (190 mm)

1шт.

7

A151931

FILTER

ELEMENT - water, service, 4-13/64 inch long (107 mm)

1шт.

10

A154051

COCK, DRAIN

VALVE ASSEMBLY - water shutoff

2шт.

11

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Cylinder Block

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining

6шт.

13

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Heater 9.60 mm ID x 558.80 mm, SAE 20R3

2шт.

14

A154014

CONNECTOR, ELEC

TEE - heater hose

1шт.
