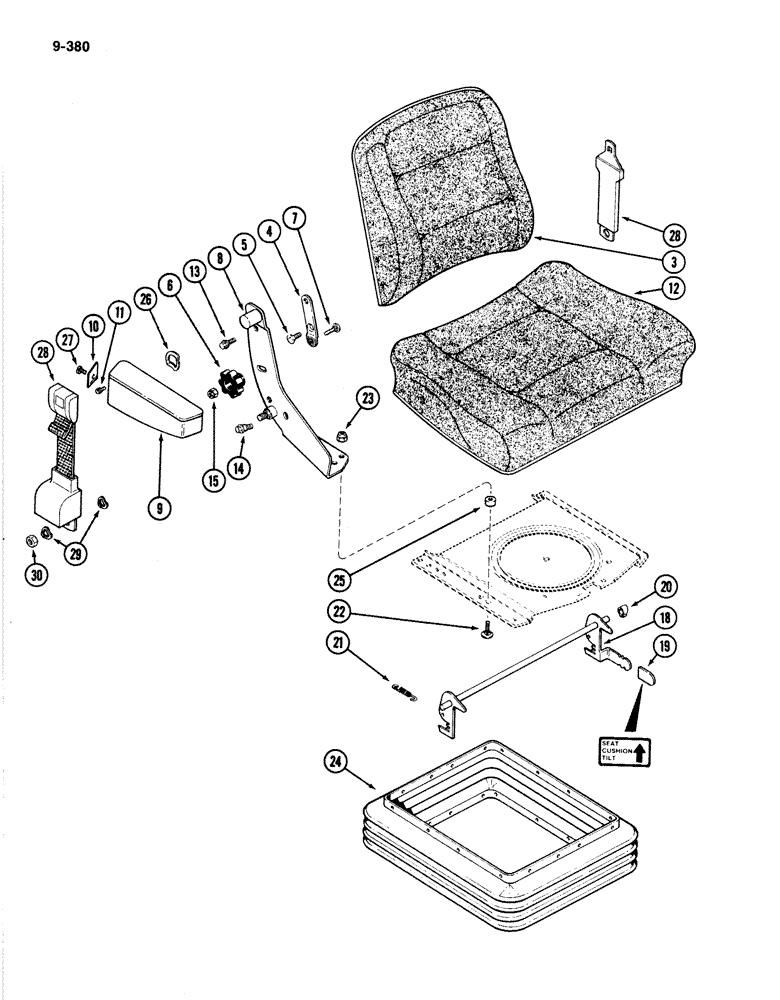

Запчасти Case IH 4894 (9-380) - SEAT AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A176376

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 3 - 30

1шт.

A49521

BACKREST

ASSEMBLY - seat, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A49521)

1шт.

4

A48343

LINK

- backrest tilt

2шт.

5

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - backrest tilt

2шт.

7

A45527

CARRIAGE BOLT

- tilt knob

2шт.

8

A49517

BRACKET

- armrest, right

1шт.

8

A49516

BRACKET

- armrest, left (Right shown)

1шт.

9

A49515

ARMREST

- seat, right

1шт.

9

A49514

ARMREST

- seat, left (Right shown)

1шт.

10

A45584

COVER

PLATE - cover, right

1шт.

10

A45583

PLATE

- cover, left (Right shown)

1шт.

11

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

12

A49520

CUSHION

- seat

1шт.

13

A48346

BOLT

- back tilt

2шт.

14

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - seat tilt

2шт.

15

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

18

A49518

LEVER

TILT ASSEMBLY - seat

1шт.

19

D82870

KNOB

CAP - seat tilt

1шт.

20

A49519

SPACER

- tilt lever

2шт.

21

A45471

- tilt lever tension

2шт.

22

113-222

X

BOLT - hex, 3/8 NC x 1-1/4 inch

4шт.

23

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

24

A49618

BOOT

- seat

1шт.

25

A49523

SPACER

- seat

4шт.

26

A47352

WASHER

- wave

4шт.

27

187-835

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, No. 10 - 16 x 5/8 Inch

2шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

- wave

4шт.

30

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex lock, 1/2 inch NC

2шт.
