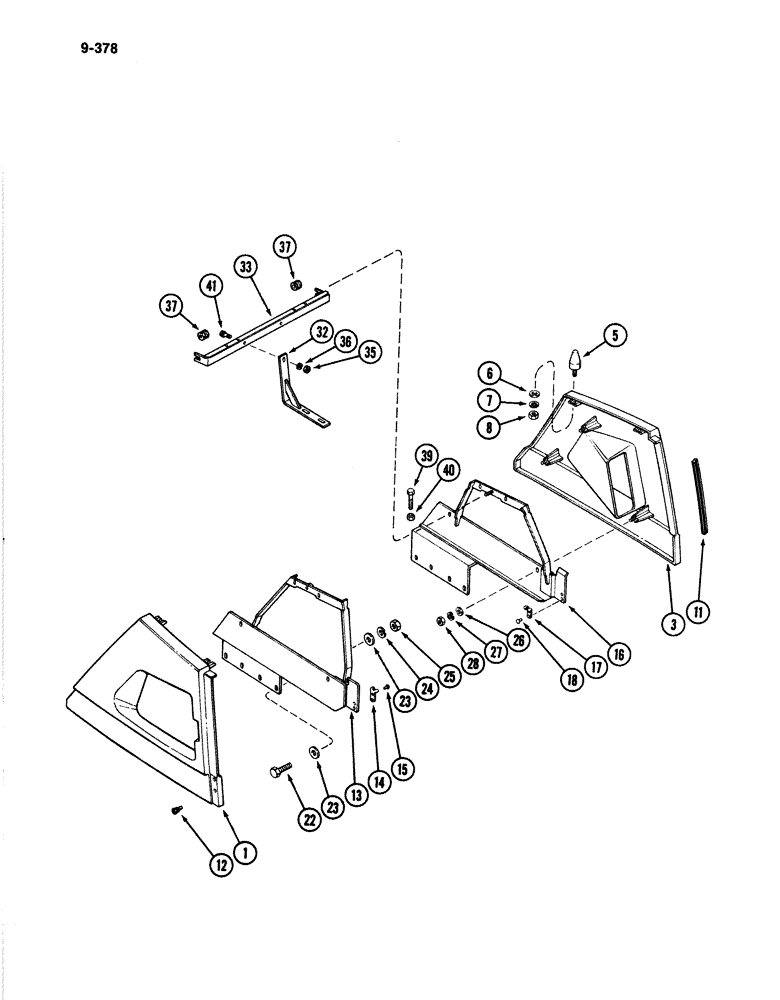

Запчасти Case IH 4894 (9-378) - REAR SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A167278

PANEL

HOOD ASSEMBLY - right rear

1шт.

3

A167279

PANEL

HOOD ASSEMBLY - left rear

1шт.

5

A149863

GUIDE

- top hood

4шт.

6

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

11

A162798

CLUTCH FACING

SEAL - rear hood side (Order A151423)

2шт.

12

A161780

BUMPER

- rear hood rubber

4шт.

13

A167061

BRACKET

ASSEMBLY - rear hood, right, Includes: Ref. 14 and 15

1шт.

14

L47158

BRACKET

- latch hook

1шт.

15

151-554

RIVET

- button head, 3/16 x 1/4 inch

2шт.

16

A167062

BRACKET

ASSEMBLY - rear hood, left, Includes: Ref. 17 and 18

1шт.

17

L47158

BRACKET

- latch hook

1шт.

18

151-554

RIVET

- 3/16 x 1/4 inch button head

2шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

23

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

8шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

26

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

32

A167058

BRACKET

- rear tie rod support

1шт.

33

A177465

BAR

- hood adjusting (Replaces A169535)

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

A147282

SPOOL

- lower side panel lock

2шт.

85-410

SET SCREW,Sq Hd, 1/4"-20 x 5/8"

SCREW - square head set, 1/4 NC x 5/8 inch

2шт.

39

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

41

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.
