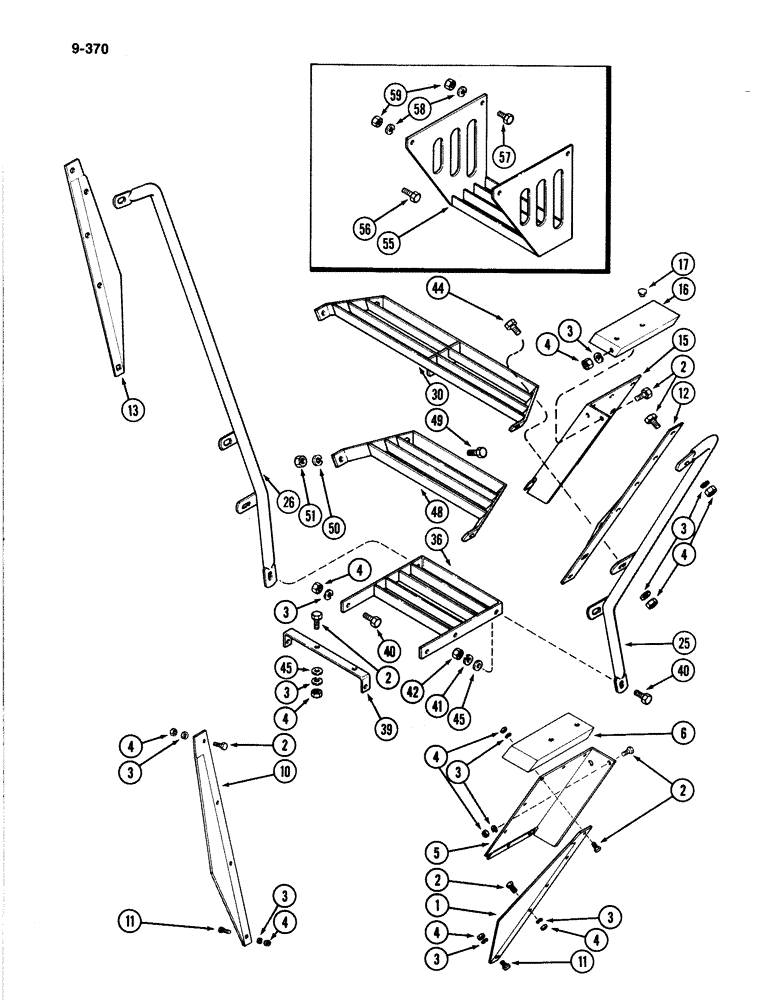

Запчасти Case IH 4894 (9-370) - WHEEL GUARDS, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A140559
GUARD
- wheel, right front
1шт.
3
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
46шт.
4
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
45шт.
5
A144086
GUARD
- wheel, right front
1шт.
6
A144087
CAP
- guard, right front
1шт.
10
A140560
GUARD
- wheel, right rear
1шт.
11
111-360
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5
4шт.
12
A165980
GUARD
- wheel, left front
1шт.
13
A162159
GUARD
- wheel, left rear
1шт.
15
A144091
GUARD
- wheel, left front
1шт.
16
A144092
CAP
- guard, left front
1шт.
17
205-23
PLUG,17/32"
- button, 21/32 inch (17 mm) diameter
4шт.
25
A177533
RAIL ASSY.
RAIL - hand, left front (Replaces A165981)
1шт.
26
A165983
RAIL
- hand, left rear
1шт.
30
A162434
STEP
- upper
1шт.
36
A162209
STEP
- lower
1шт.
39
A162154
SUPPORT
- lower step
1шт.
40
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
41
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
42
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
44
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
44
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
5шт.
45
195-104
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)
7шт.
48
A162446
STEP
- middle
1шт.
49
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
50
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
51
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
A67595
ATTACHMENT - step extension (Machinery Item), Includes: Ref. 55 - 59
1шт.
55
A162412
STEP - extension (Machinery Item), attachment
1шт.
56
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Step extension attachment Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
57
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Step extension attachment Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
58
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Step extension attachment 3/8"
2шт.
59
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Step extension attachment 3/8"-16, G5
2шт.
Выбрано товаров: 34
