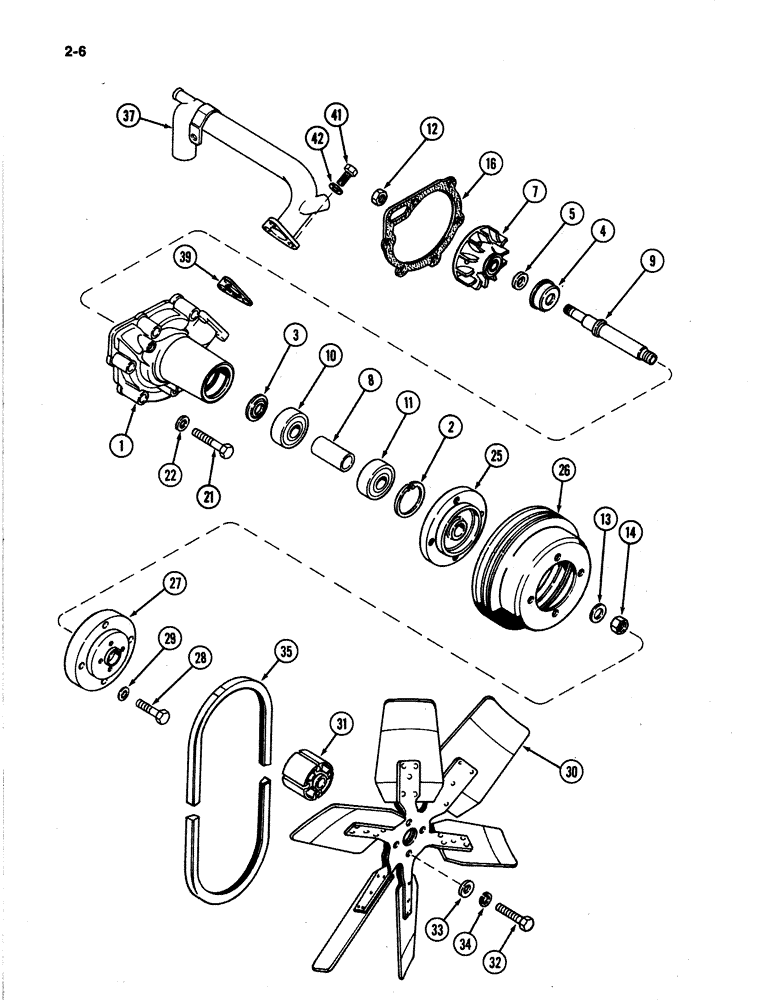

Запчасти Case IH 4894 (2-06) - WATER PUMP AND FAN 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A70690

PUMP, WATER

WATER PUMP ASSEMBLY - engine (Replaces A166193), Includes: Ref. 1 - 14

1шт.

1

A46537

HOUSING

BODY - pump

1шт.

2

A46042

RING

- snap, bearing

1шт.

3

A46271

GUARD

SHIELD - bearing

1шт.

4

A70689

SEAL

- carbon (Replaces A166195)

1шт.

5

A46565

RING

- wear

1шт.

7

A46266

IMPELLER

- coolant

1шт.

8

A46539

BUSHING

SPACER - shaft bearing

1шт.

9

A46538

SHAFT

- impeller

1шт.

10

A46270

BALL BEARING

BEARING - inner

1шт.

11

A46273

BALL BEARING

BEARING - outer

1шт.

12

A46274

NUT

- rear, Serial Range: impeller-shaft

1шт.

13

A46041

WASHER

- lock

1шт.

14

A46040

NUT

- front, impeller shaft

1шт.

16

A46258

GASKET

- pump, Serial Range: body-head

1шт.

21

814-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

6шт.

22

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

6шт.

25

A46543

HUB

- pump drive

1шт.

26

A46261

PULLEY

- pump drive (2 grooves)

1шт.

27

A165465

BUSHING

SPACER - fan

1шт.

28

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, M12 x 45 mm (Spacer to hub)

4шт.

29

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

4шт.

30

A149829

FAN

- suction

1шт.

31

A165397

FAN

SPACER - fan, 2 inch (51 mm) wide

1шт.

32

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

33

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

4шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

A138001

SET OF BELTS,0.50" W x 62.00" L

BELT , Fan (Set of 2) 0.50" W x 62.00" L

1шт.

37

A46884

TUBE

- water, Serial Range: pump-cooler

1шт.

39

A46542

GASKET

- tube to water pump

1шт.

41

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 1.25 x 25 mm

3шт.

42

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

3шт.
