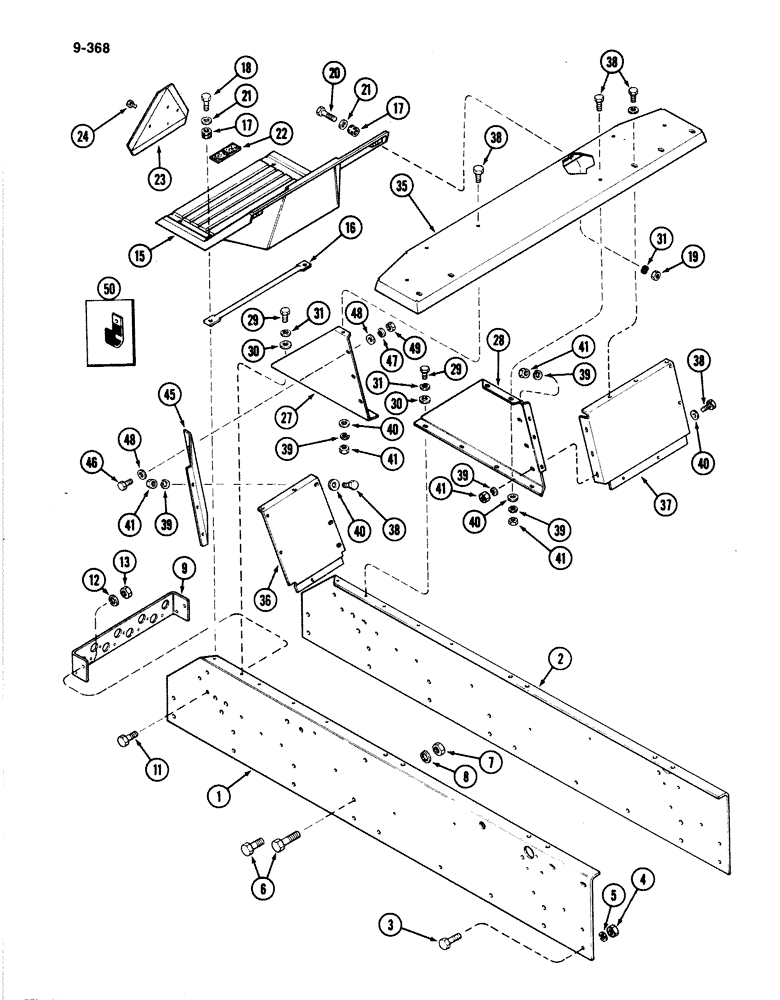

Запчасти Case IH 4894 (9-368) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS

1

A166845

PLATE

- side, right

1шт.

2

A161944

PLATE

- side, left

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

8шт.

7

129-107

NUT,5/8"-11, G5

16шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A165737

PLATE ASSY.

PLATE - rear, hydraulic coupling mounting

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

92-8

LOCK WASHER,1/2"

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

15

A160031

PLATFORM

- rear

1шт.

16

A160390

SUPPORT

- cross, rear cover

2шт.

17

A162019

GROMMET

- rear cover mounting

6шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

113-2245

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/2", G5

BOLT, Locking, 3/8"-16 x 1 1/2", G5

4шт.

21

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

22

A181872

STRIP

TREAD - non slip, rear platform (Replaces A143553)

6шт.

23

A163604

DECAL

EMBLEM - SMV

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - indented hex, 1/4 NC x 1/2 inch

2шт.

27

A149450

SHEET

- right side, rear platform

1шт.

28

A149449

SHEET

- left side, rear platform

1шт.

29

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

30

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

7шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

35

NLS

NO LONGER SERVICED

- rear

1шт.

36

A160064

GUARD

- right rear

1шт.

37

A160063

GUARD

- left rear

1шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

40

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

9шт.

45

A160062

GUARD

- console cables (right rear corner)

1шт.

46

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

48

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

50

A149624

CLIP

- retaining

3шт.
