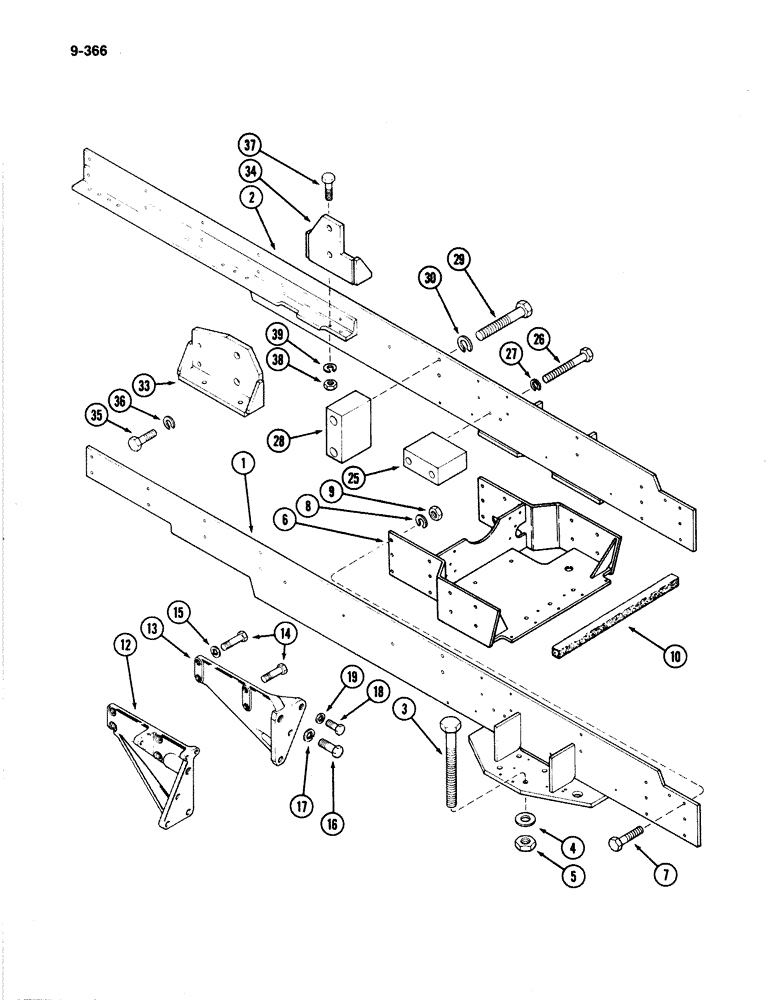

Запчасти Case IH 4894 (9-366) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

A169570

SILL

RAIL - right, chassis

1шт.

2

A169571

SILL

RAIL - left, chassis

1шт.

3

28-18152

BOLT,Hex, 1-1/8" - 12 x 9-1/2", Gr 8

- hex, 1-1/8 NF x 9-1/2 inch (Grade 8)

8шт.

4

A152201

WASHER

- flat, 1-3/16 x 2-1/2 x 3/16 inch (20 x 64 x 5 mm)

8шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

8шт.

6

A162392

FRAME

- extension, chassis

1шт.

7

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

8шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

129-107

NUT,5/8"-11, G5

12шт.

10

A150488

SEAL

FOAM - seal, 2 square x 34 inch long

1шт.

12

A140414

SUPPORT

- right, engine mounting, transmission

1шт.

13

A148155

SUPPORT

- left, engine mounting, transmission

1шт.

14

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 x 1.75 x 35 mm, engine & transmission support

8шт.

15

92-8

LOCK WASHER,1/2"

engine & transmission support 1/2"

8шт.

16

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Engine & transmission supports Hex, 3/4"-10 x 2", G5

2шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission supports 3/4"

2шт.

18

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Engine & transmission supports Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

6шт.

25

A136981

BUSHING

SPACER - front, transmission mounting, engine supports

2шт.

26

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

Engine and transmission supports Hex, 5/8"-11 x 5 1/2", G5

4шт.

27

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

4шт.

28

A136980

BUSHING

SPACER - center, transmission mounting, engine support

2шт.

29

26-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex, 3/4 NC x 6 inch (Grade 8), engine & transmission supports

4шт.

30

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission supports 3/4"

4шт.

33

A136965

BRACKET

- right support, transmission rear, engine

1шт.

34

A150395

BRACKET

- left support, transmission rear, engine

1шт.

35

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Engine & transmission supports Hex, 3/4"-10 x 2 1/4", G5

4шт.

36

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Engine & transmission supports 3/4"

4шт.

37

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, engine & transmission supports

4шт.

38

129-107

NUT,5/8"-11, G5

Engine & transmission supports 5/8"-11, G5

4шт.

39

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Engine & transmission supports 5/8"

4шт.
