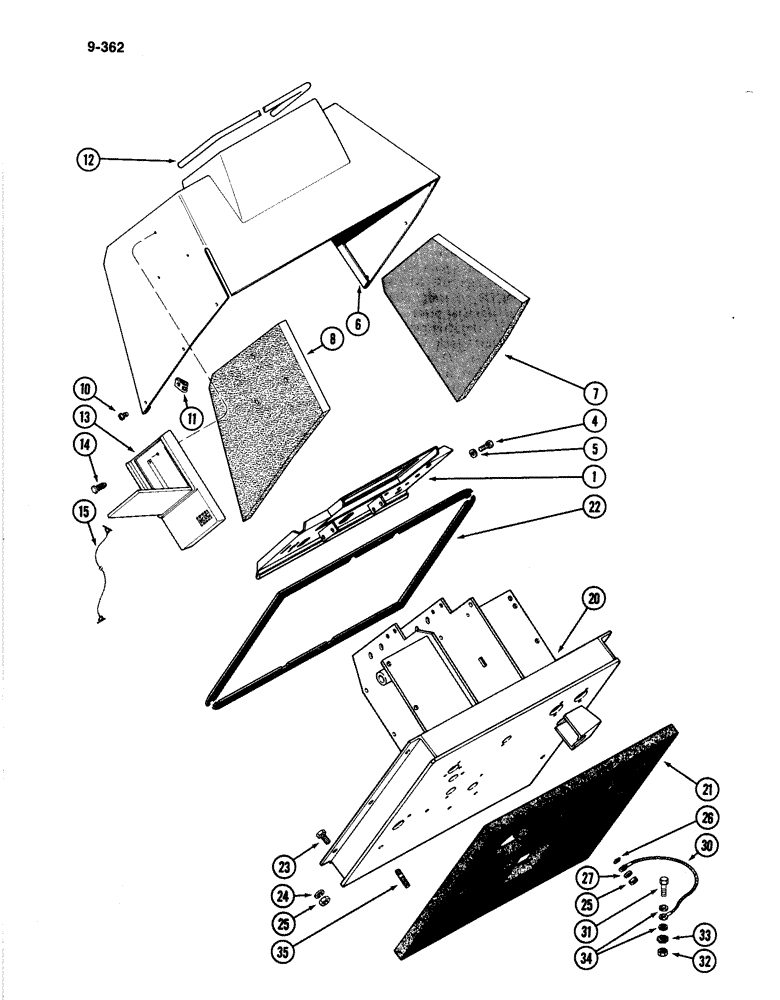

Запчасти Case IH 4894 (9-362) - INSTRUMENT PANEL AND COWL (09) - CHASSIS/ATTACHMENTS

1

A176135

PANEL ASSY.

PANEL - instrument

1шт.

4

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

A164214

COWL

- instrument cluster

1шт.

7

A149411

INSULATOR

PAD - L.H. cowl

1шт.

8

A149412

FOAM

PAD - R.H. cowl

1шт.

10

A75390

STUD

- fastener

6шт.

11

L40219

FASTENER

RECEPTACLE - fastener (Order A36042)

6шт.

12

A76234

ROPE

CORD - cowl support

1шт.

13

A177376

BOX

- operators manual (Replaces A169003)

1шт.

14

A162364

FASTENER

-, Serial Range: box-cowl

3шт.

15

A141917

ROPE

CORD - manual retaining

2шт.

20

A166759

SUPPORT ASSY.

SUPPORT ASSEMBLY - instrument and firewall, panel

1шт.

21

A164739

PAD

- firewall, panel support

1шт.

22

A162986

GASKET

- support, panel firewall

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Panel support & firewall Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Panel support & firewall Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Panel support & firewall 3/8"

12шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Panel support & firewall 3/8"-16, G5

12шт.

26

193-72

LOCK WASHER

- internal/external lock, 3/8 inch, panel support & firewall

2шт.

27

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch (11 x 25 x 2 mm), Panel support & firewall

12шт.

30

A64704

STRAP

- ground, Panel support & firewall

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/8 inch, panel support & firewall

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

Panel support & firewall 1/2"-13, G5

1шт.

33

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Panel support & firewall Ext-Int Tooth, 1/2"

1шт.

34

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm), panel support & firewall

2шт.

35

A59077

STUD

- support to cab, panel & firewall

2шт.
