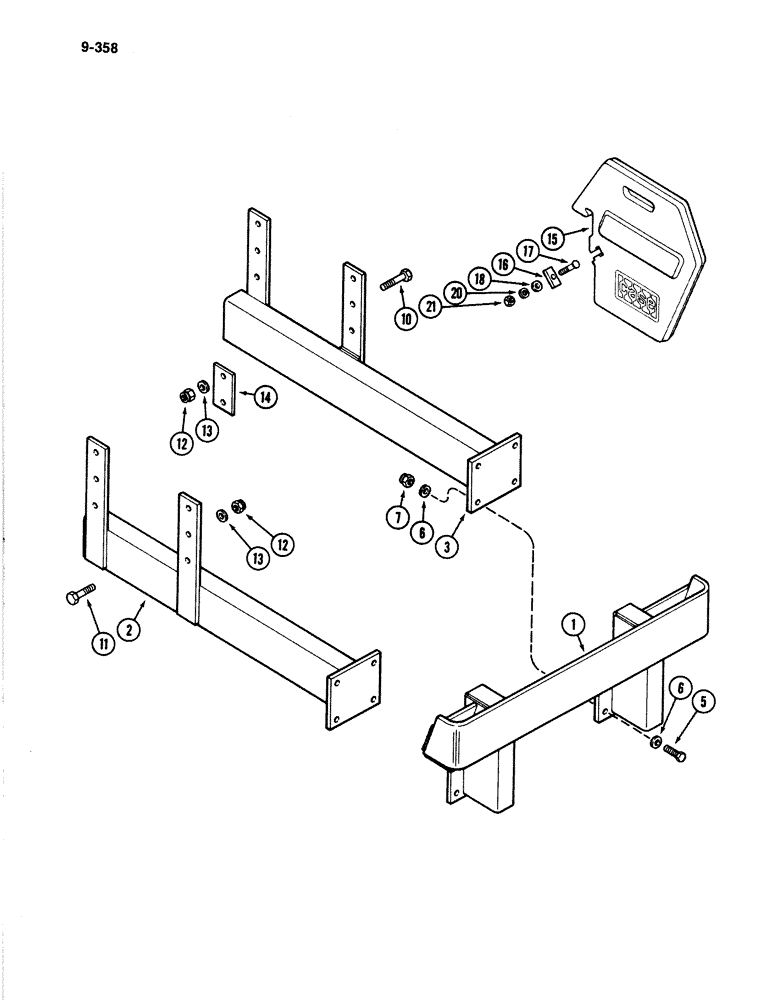

Запчасти Case IH 4894 (9-358) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

A169753

ATTACHMENT - frame, front end weight (Machinery Item), Includes: Ref. 1 - 14

1шт.

1

A169529

FUNNEL

FRAME - front, weight supporting

1шт.

2

A169628

FRAME ASSY

FRAME - R.H., weight supporting

1шт.

3

A169629

FRAME

- L.H., weight supporting

1шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 1/8 inch (17 x 33 x 3)

16шт.

7

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8-11 inch

8шт.

10

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch Grade 8

5шт.

Use 426-1056 bolts

1шт.

11

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch Grade 8

4шт.

Use 426-1044 Bolts

1шт.

12

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8-11 inch NC

9шт.

13

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8 x 1-3/64 x 5/32 inch (16 x 26 x 4 mm)

9шт.

Use T53567 Washers

1шт.

14

A169621

SPACER

1шт.

15

A169111

WEIGHT

- front, 100 lb (45kg) (Machinery Item)

1шт.

A177102

KIT

HARDWARE KIT - mounting, front weight (Machinery Item), Includes: Ref. 16 - 21

1шт.

16

A145919

CLAMP

- weight

1шт.

17

A169139

SQUARE BOLT

- round head square neck, 1/2 NC x 3 inch

1шт.

18

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 1/8 inch (13 x 27 x 39 mm)

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
