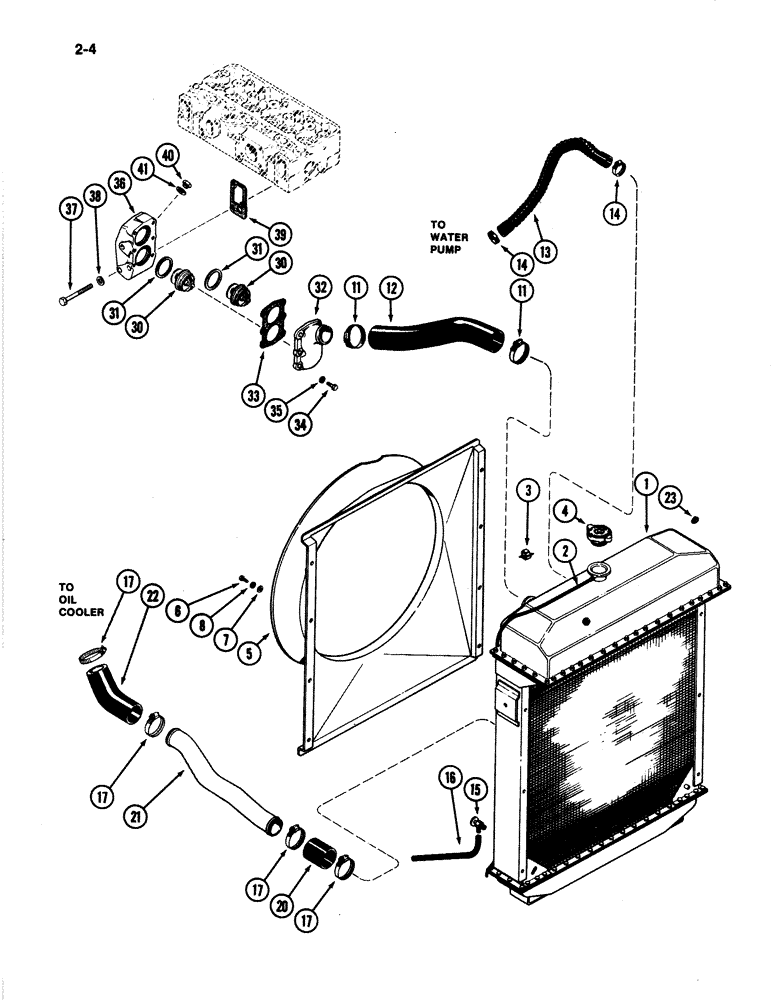

Запчасти Case IH 4894 (2-04) - RADIATOR AND HOSES, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A166304

RADIATOR

ASSEMBLY - engine coolant, Includes: Ref. 2 and 3

1шт.

2

A45690

TUBE

HOSE - overflow, radiator

1шт.

3

A62079

CLIP

- overflow hose

2шт.

4

A166776

CAP

- radiator, 10 PSI (69 kPa) (Replaces A165862)

1шт.

5

A165469

GUARD

SHROUD - fan

1шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

7

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 7/64 inch (7 x 25 x 3 mm)

8шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

retaining #36, 1.81/2.75 Type F Worm

2шт.

12

A148149

RADIATOR HOSE,2.25" ID x 15.20", SAE 20R4

Upper, Thermostat Housing to Radiator

1шт.

13

A146503

HOSE,31.8 mm ID x 736.60 mm, SAE 20R5 CLASS C

1.25" ID x 29.00", SAE 20R5 Class C - Pressure, Radiator to water pump

1шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

retaining #28, 1.31/2.25 Type F Worm

2шт.

15

A27862

COCK, DRAIN

VALVE - drain, radiator, 1/4 inch PT

1шт.

16

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

retaining #36, 1.81/2.75 Type F Worm

4шт.

20

H158592

HOSE,57.20 mm ID x 101.60 mm, SAE 20R2

Lower, Radiator to Oil Cooler Tube 57.20 mm ID x 101.60 mm, SAE 20R2

1шт.

21

A167055

TUBE

- radiator to engine oil cooler

1шт.

22

A167018

HOSE,57.00 mm ID x 163.00 mm, SAE 20R4 CLASS C OR SAE 20R4 CLASS D1 OR D2

57.00 mm ID x 163.00 mm, SAE 20R4 Class C, D1, or D2 - Elbow, Tube to Engine Oil Cooler

1шт.

23

221-841

PLUG

- socket head, 1/4 inch PT

2шт.

30

A45759

THERMOSTAT

S - engine coolant, 175 degrees F (79 degrees C), housing

2шт.

31

A45770

GASKET

-, Serial Range: thermostat-housing

2шт.

32

A45768

COVER

- thermostat housing

1шт.

33

A45769

GASKET,0.5mm Thk

- housing cover, thermostat

1шт.

34

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm, thermostat & housing

6шт.

35

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm), thermostat & housing

6шт.

36

A45767

HOUSING

- thermostat

1шт.

37

A70889

BOLT

- mounting, housing, thermostat

3шт.

38

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm), thermostat & housing

3шт.

39

A46566

GASKET

- thermostat, Serial Range: housing-head

1шт.

40

A45764

PLUG

- thermostat housing

1шт.

41

A45766

GASKET

- plug, thermostat & housing

1шт.
