Запчасти Case IH 4894 (9-348) - THREE POINT HITCH LIFT LINKS AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

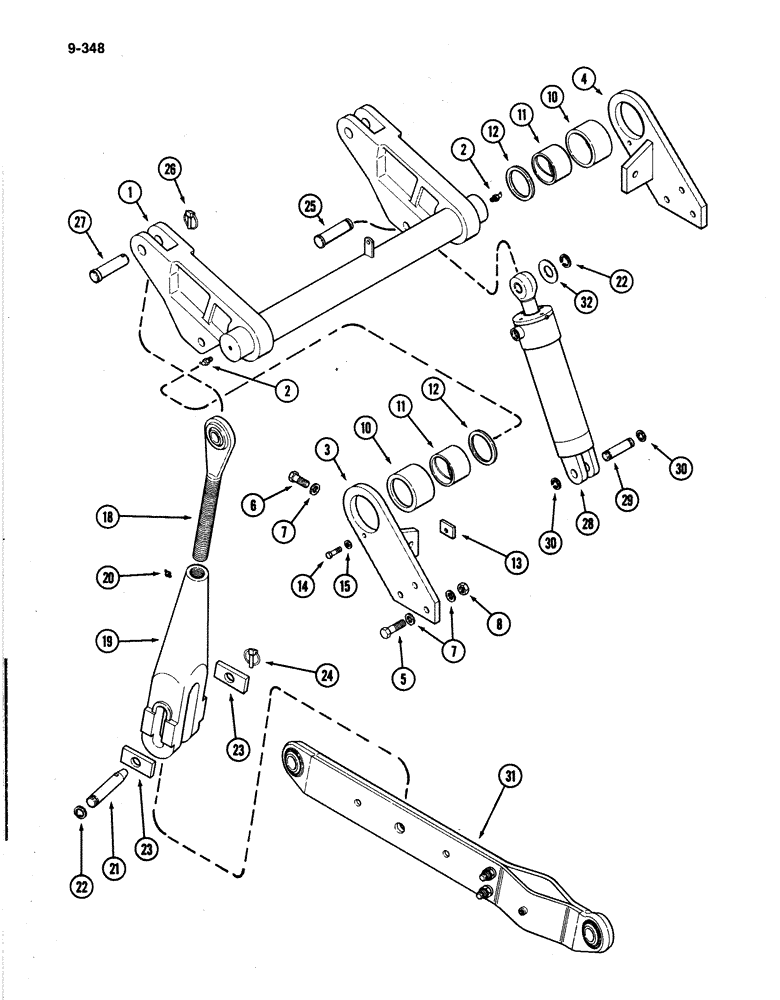

Схема запчастей Case IH 4894 - (9-348) - THREE POINT HITCH LIFT LINKS AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS
30
12
23
32
31
19
3
2
12
26
7
25
20
14
6
30
11
8
10
22
24
21
18
15
2
13
4
27
29
10
22
23
1
5
11
7
28

Артикул

Название

Примечание

Количество

1

A164413

ROCKSHAFT

- hitch

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 45 degree x 1/8 inch PT

2шт.

3

A146765

SUPPORT

- bearing, rockshaft right

1шт.

4

A146766

SUPPORT

- bearing, rockshaft left

1шт.

5

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- hex, 3/4 NF x 3 inch

6шт.

6

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch

2шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- support bolt

14шт.

8

131-186

LOCK NUT,3/4"-16, GB

NUT - hex lock, 3/4 inch NF

6шт.

10

A161892

BEARING ASSY

HOUSING ASSEMBLY - bearing rockshaft, Includes: Ref. 11

2шт.

11

A162505

BUSHING

- rockshaft

1шт.

12

A32804

WASHER

- thrust, rockshaft

2шт.

13

A146768

KEY

- retainer, housing

2шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

A167089

ROD

ASSEMBLY - lift link

2шт.

19

A167087

LINK

- lift, clevis

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, straight 1/8 inch

2шт.

21

A76286

PIN,31.6mm OD x 193.04mm L

- lift link, lower

2шт.

22

17406

RING

- snap, link pin

2шт.

23

A63515

PLATE

- stop, lift link

4шт.

24

A64204

PIN

ASSEMBLY - klik, locking

2шт.

25

A165314

PIN

- pivot, hitch cylinder upper

2шт.

26

A30338

PIN

ASSEMBLY - klik, locking

2шт.

27

A163277

PIN

- lift link, upper

2шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch (See Figure 8-346)

2шт.

29

A76281

PIN

- pivot, hitch cylinder lower

2шт.

30

A12667

RING

- snap, lower pin

4шт.

31

REF

INSTRUCTION

ARM ASSEMBLY - draft (See Figure 9-350)

2шт.

32

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 1-5/16 x 2 x 7/64 inch (33 x 51 x 3 mm )

2шт.

Выбрано товаров: 29
