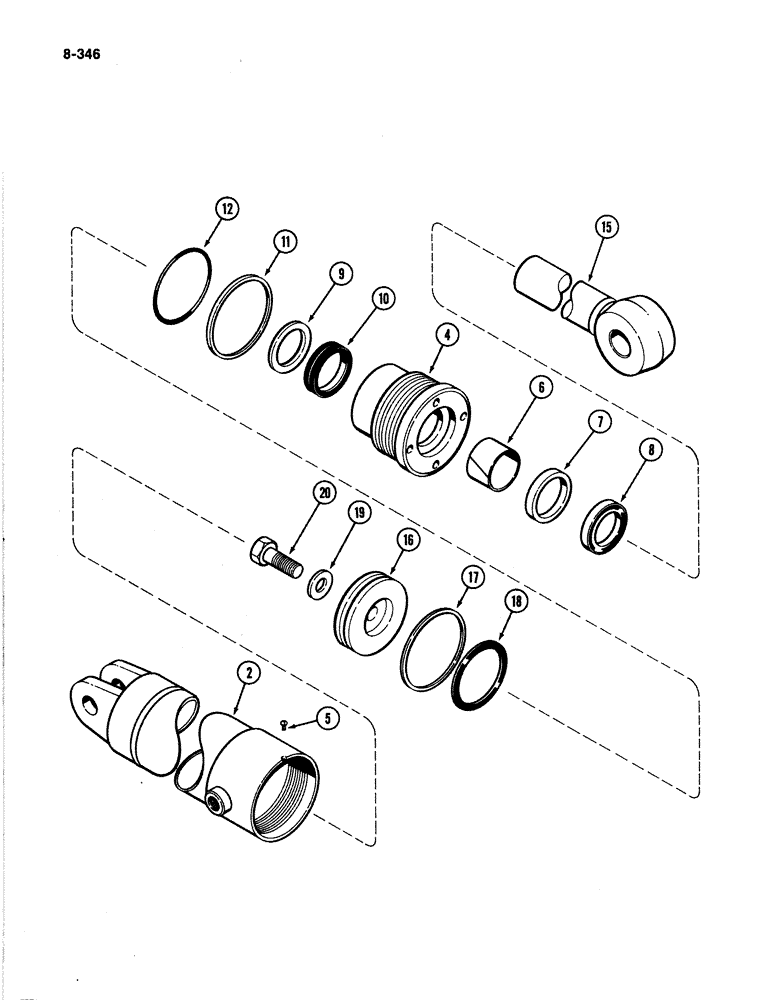

Запчасти Case IH 4894 (8-346) - HITCH LIFT CYLINDER ASSEMBLY 4 INCH (102MM) BORE X 9-27/32 INCH (250MM) STROKE (08) - HYDRAULICS

G105435

CYLINDER

ASSEMBLY - hitch lift, Includes: Ref. 2 - 20

2шт.

2

G33957

TUBE,18.11" L

ASSEMBLY - cylinder

1шт.

G104933

CYLINDER

GLAND ASSEMBLY - tube end, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - slotted self tapping, 8-32 x 3/8 inch

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

7

G34299

RING

- center bearing

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

9

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- gland buffer

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

10

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- piston rod

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

15

G105436

PISTON

ROD - piston, 1-1/2 inch diameter (38 mm)

1шт.

16

G104114

PISTON

- cylinder

1шт.

Includes two seals molded into Piston

1шт.

17

G31928

RING

- piston seal

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston

1шт.

Part of Cylinder Repair KIt, P/N G109477

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G109477

KIT

- repair, cylinder, Includes: ref. nos. 6, 8, 9, 10, 11, 12, 17, and 18

1шт.
