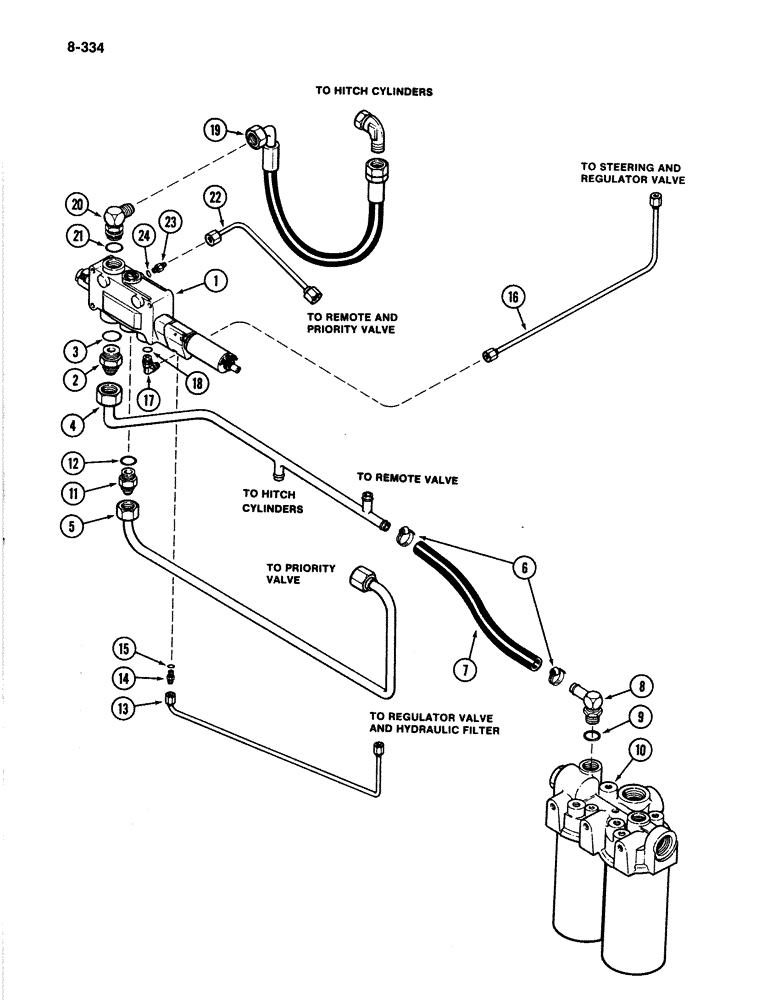

Запчасти Case IH 4894 (8-334) - HITCH CONTROL VALVE CIRCUITRY P.I.N. 8865502 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-344)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16 thread x 1 tube 1-5/16-12 inch thread, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (30 x 36 x 3 mm)

1шт.

4

A166741

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A166700

PIPE

TUBE ASSEMBLY - priority valve to hitch valve

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

7

A162206

HOSE - drain, without PTO, 16 inch long (406 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

7

A162205

HOSE - drain, with PTO, 9-1/2 inch long (241 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, 3/4 hose x 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64 inch (30 x 3 mm)

1шт.

10

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-278)

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16 inch thread, Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

13

A166724

PIPE

TUBE ASSEMBLY - hitch valve drain

1шт.

14

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-20 inch thread, Incl. Ref. 15

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 5/64 inch (9 x 2 mm)

1шт.

16

A166683

PIPE

TUBE ASSEMBLY - hitch valve to steering valve

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

19

A148749

HOSE

ASSEMBLY - hitch valve pressure

1шт.

20

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (24 x 3 mm)

1шт.

22

A166701

TUBE

ASSEMBLY - hitch valve sensing

1шт.

23

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.
