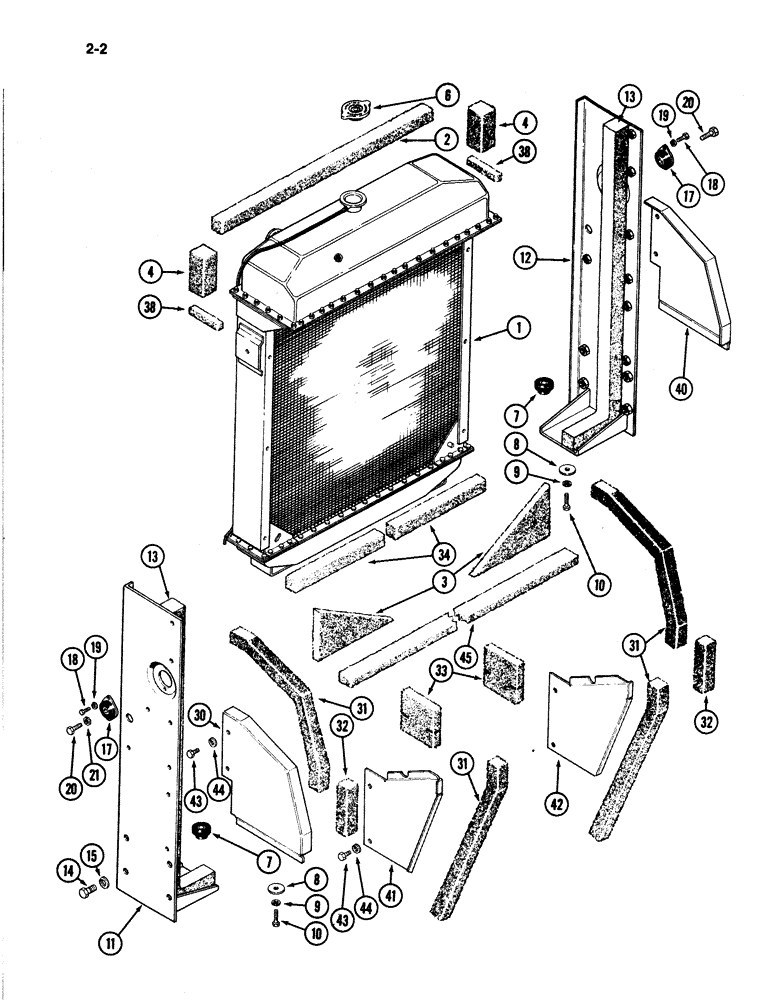

Запчасти Case IH 4894 (2-02) - RADIATOR, BAFFLES, SUPPORTS AND SEALS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine coolant (See Figure 2-4)

1шт.

2

A150488

SEAL

- top front, 2 square x 34 inch (51 x 864 mm)

2шт.

3

A150496

SEAL

- corner, lower

2шт.

4

A150489

SEAL

- top side, 2 square x 5 inch (51 x 127 mm)

4шт.

6

A166776

CAP

- radiator, 10 PSI (69 kPa) (Replaces A165862)

1шт.

7

A142542

MOUNTING PARTS

MOUNT - radiator stud, lower

2шт.

8

51200247

WASHER

- mounting, lower, Gear Spacer

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

A161652

SUPPORT

- right side, radiator

1шт.

12

A161653

SUPPORT

- left side, radiator

1шт.

13

A150490

SEAL

- radiator to support, 2 square x 46 inch (51 x 1 168 mm)

2шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

18

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, No. 10-24 x 1/2 inch

4шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

A146044

BAFFLE

- upper right side, radiator

1шт.

31

A161454

SEAL - radiator upper baffle (Order A150488, cut to desired length

4шт.

32

A161456

SEAL - radiator upper baffle (Order A150488, cut to desired length

2шт.

33

A149926

SEAL

- radiator top corner

2шт.

34

A150492

FOAM

SEAL - front frame

1шт.

38

A148863

SEAL

- radiator support, 3/4 square x 4-1/2 inch (19 x 114 mm)

2шт.

40

A146045

BAFFLE

- upper left side, radiator

1шт.

41

A150389

BAFFLE

- lower right

1шт.

42

A150390

BAFFLE

- lower left

1шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

45

A149860

SEAL PROTECTION

- hood lower grille, 3/8 square x 45 inch (10 x 1143 mm) (Order A166634 and, Serial Range: cut-length)

1шт.

A150493

SEAL

- frame, side, 2 square x 3-1/2 inch (51 x 89 mm) (Not Shown)

2шт.
