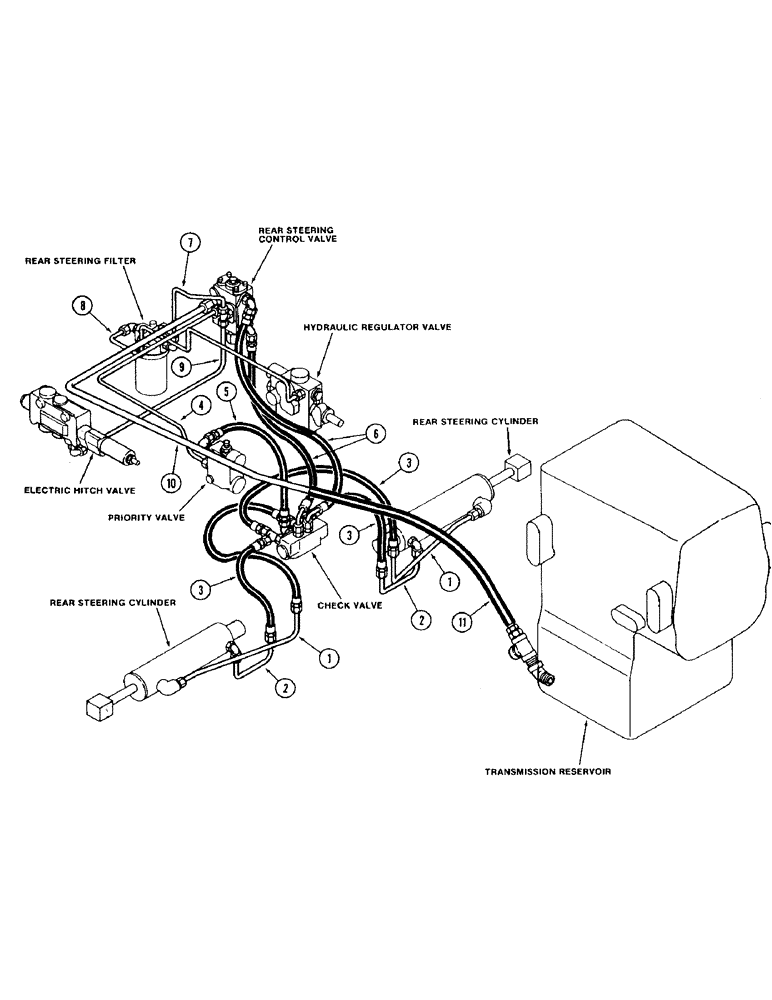

Запчасти Case IH 4894 (1-15) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Steering cylinder tube to check valve hose (Long), Page 5-133

1шт.

2

Steering cylinder tube to check hose (Short), Page 5-133

1шт.

3

Steering cylinder to check valve hose, Page 5-133

1шт.

4

Steering valve to priority valve tube, Page 5-131

1шт.

5

Priority valve to check valve hose, Page 5-131

1шт.

6

Steering valve to check valve hose, Page 5-131, 5-133

1шт.

7

Steering filter outlet tube, Page 5-135

1шт.

8

Steering filter inlet tube, Page 5-135

1шт.

9

Steering valve to hitch valve tube, Page 5-135

1шт.

10

Steering valve to transmission reservoir tube, Page 8-271

1шт.

11

Steering valve to transmission reservoir hose, Page 8-271

1шт.
