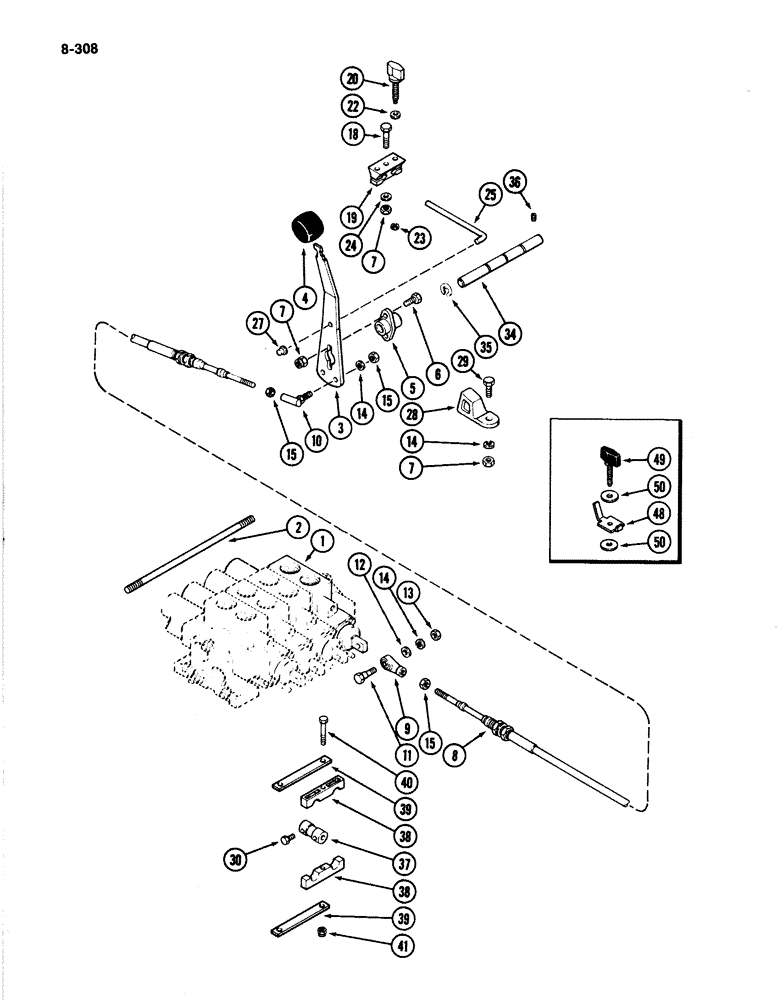

Запчасти Case IH 4894 (8-308) - REMOTE HYDRAULIC ATTACHMENT (08) - HYDRAULICS

A167632

ATTACHMENT - remote hydraulic (Machinery Item), Includes: Ref. 1 - 50

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-314)

1шт.

2

A147508

STUD

- valve body

3шт.

3

A166913

LEVER

- control, remote

1шт.

Ref #3A - A181265 Lever, Longer

1шт.

4

A177435

BALL KNOB

KNOB - lever (Replaces A137806)

1шт.

5

A162299

BEARING,15.95mm ID

- lever

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

8

A152757

CABLE

ASSEMBLY - remote control

1шт.

9

A146456

BALL

JOINT - ball, cable to valve spool

1шт.

10

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ASSEMBLY - ball

1шт.

11

A148510

BOLT

- shoulder

1шт.

12

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 (7 x 16 x 2 mm)

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

18

113-74

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- hex, 1/4 NC x 1-1/4 inch

1шт.

19

A166866

BLOCK

- friction

1шт.

20

A162958

BUTTON

KNOB - lever stop

1шт.

22

K651904

WASHER

- nylon

1шт.

23

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, , knob #X18, .122" Dia, E-Type

1шт.

24

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 (7 x 16 x 2 mm)

1шт.

25

A166899

ROD

- lever lock

1шт.

27

S118721

NUT

PUSH NUT - lock rod

1шт.

28

A141542

LEVER

TAB - float lockout

1шт.

29

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

187-985

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex blunt point tapping, No. 10 x 3/4 inch

1шт.

34

A162325

SHAFT

- lever

1шт.

35

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

36

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch

1шт.

37

A164240

SPOOL

- flow control

2шт.

38

A164241

BLOCK

- flow control

2шт.

39

H252767

STRAP

- back up

2шт.

40

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

44

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

A67202

ATTACHMENT

STOP KIT - lockout, remote lever

1шт.

48

A176175

CLAMP

- lever stop

1шт.

49

A162958

BUTTON

KNOB - stop

1шт.

50

195-128

WASHER,5/16"

- Flat, 3/8 x 1-1/8 x 1/16 Inch (10 x 29 x 2 MM)

2шт.
