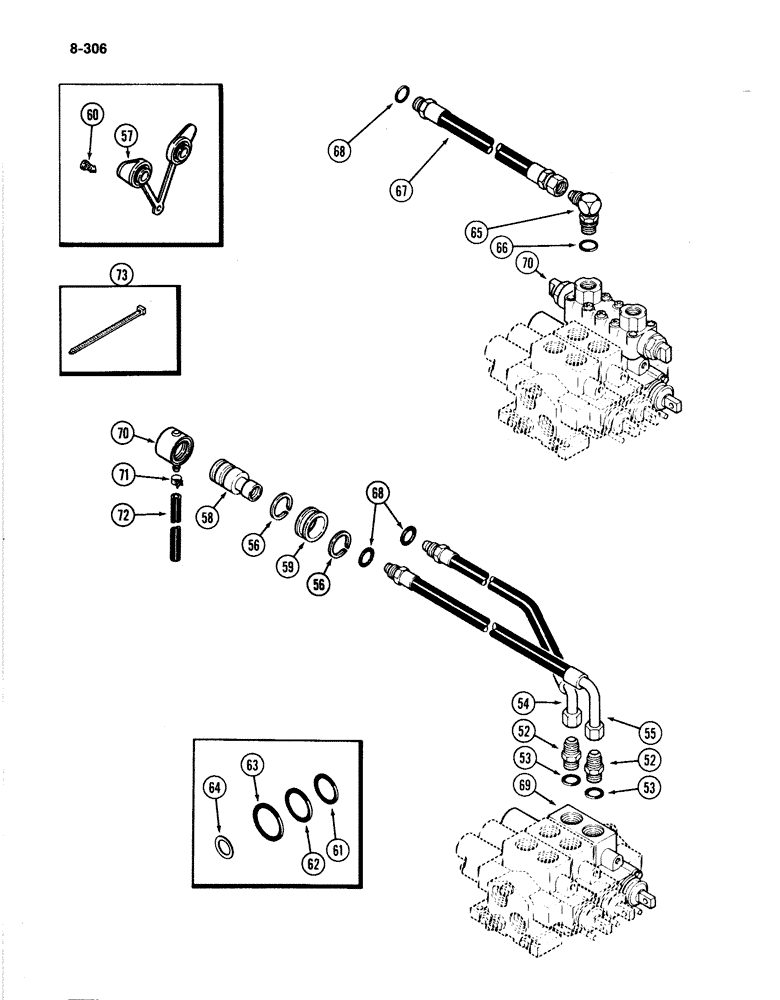

Запчасти Case IH 4894 (8-306) - REMOTE HYDRAULIC ATTACHMENT (08) - HYDRAULICS

52

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread (Continued from Figure 8-304), Includes: Ref. 53

2шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

54

A162486

HOSE

ASSEMBLY - remote, short (Used with Ref. 1) (Includes Ref. 68)

1шт.

55

A162487

HOSE

ASSEMBLY - remote, long (Used with Ref. 1) (Includes Ref. 68)

1шт.

56

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

57

A145468

PLUG

- dust (Used with A147741 coupling, Figure 9-326)

1шт.

58

REF

INSTRUCTION

COUPLING ASSEMBLY - remote (See Figure 8-324)

2шт.

59

A149221

RETAINER

- coupling

2шт.

60

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

61

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- valve, 3/4 inch (19 mm) ID

1шт.

62

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- valve, 15/16 inch (24 mm) ID

2шт.

63

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- valve

1шт.

64

D77566

SHIM,.0030" Thk

Valve (0.076 mm) .0030" Thk

3шт.

65

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread (Used with Ref. 2), Incl. Ref. 66

2шт.

66

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

67

D37184

HOSE

ASSEMBLY - remote (Used with Ref. 2)

2шт.

68

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

70

A177479

CAP

ASSEMBLY- dust (Used with A177478 coupling, Figure 9-326)

1шт.

71

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

72

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

73

R38237

STRAP

- tie, nylon

1шт.
