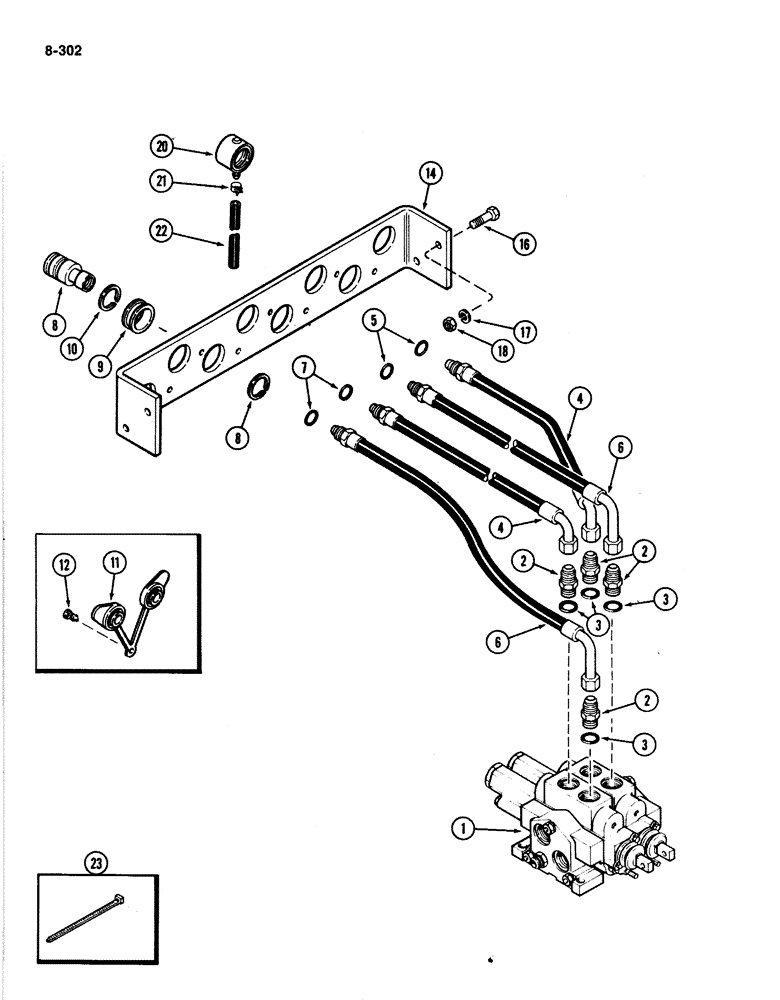

Запчасти Case IH 4894 (8-302) - REMOTE HYDRAULIC HOSES AND COUPLINGS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic control (See Figure 8-312)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 x 2 mm)

1шт.

4

A162486

HOSE

ASSEMBLY - valve to coupling, 20-1/2 inch (521 MM) 20-1/2 inch (521 MM), Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

6

A162487

HOSE

ASSEMBLY - valve to coupling, 23 inch (584 mm), Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - breakaway (See Figure 8-326)

4шт.

9

A149221

RETAINER

- coupling to rear plate

4шт.

10

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

8шт.

11

A145468

PLUG

- Dust, Coupling (Used With A147741, Figure 8-326)

2шт.

12

A162364

FASTENER

- Plug To Plate

2шт.

14

A165737

PLATE ASSY.

PLATE - coupling mounting, rear

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

20

A177479

CAP

ASSEMBLY - Dust (Used with (A177478, Figure 9-326)

4шт.

21

A180159

CLAMP,10.29mm - 12.32mm

- hose

4шт.

22

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

23

R38237

STRAP

- tie, nylon

1шт.
