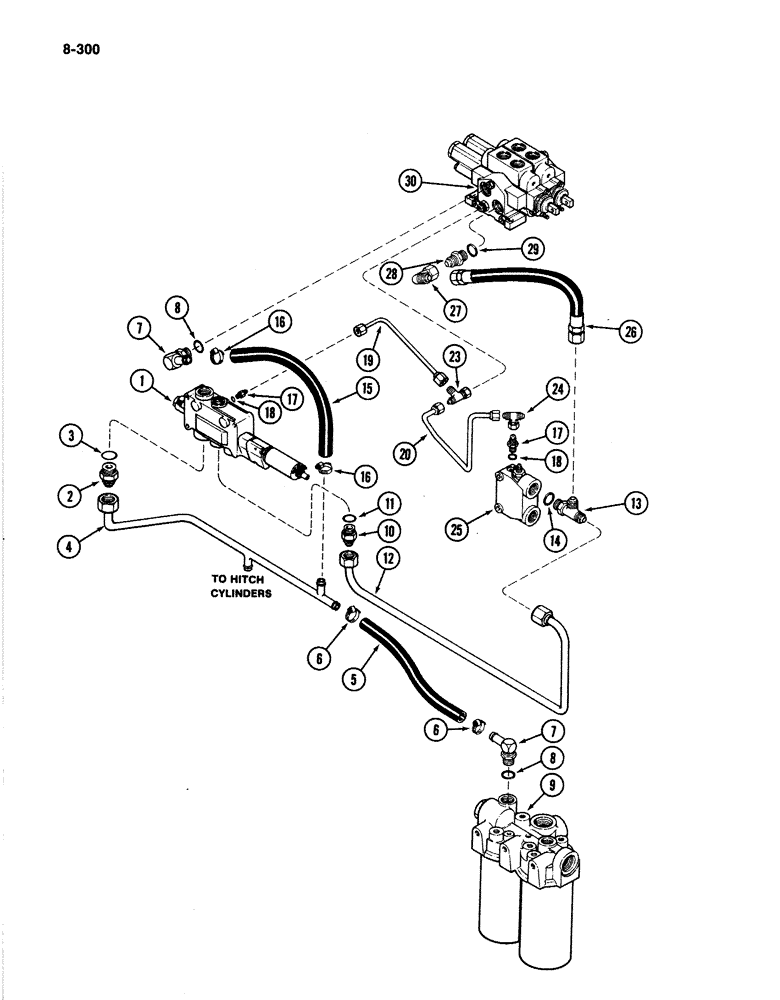

Запчасти Case IH 4894 (8-300) - REMOTE HYDRAULIC SYSTEM P.I.N. 8865502 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-344)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 7/64 inch (24 x 3 mm)

1шт.

4

A166741

TUBE

ASSEMBLY - hitch valve drain

1шт.

5

A162206

HOSE - tube to filter (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree 3/4 hose barb end x 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (24 x 3 mm) (24 x 3 MM)

1шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-278)

1шт.

10

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16 inch thread

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

12

A166700

PIPE

TUBE ASSEMBLY - priority valve to hitch valve

1шт.

13

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 3/4 Tube 1-1/16-12 thread, Includes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (24 x 3 mm)

1шт.

15

A162207

HOSE - remote valve drain (Order D55911 and, Serial Range: cut-length)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 To 1-3/4 inch (30 to 44 mm)

2шт.

17

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/4 tube 7/16 -20 inch thread, Includes: Ref. 18

2шт.

18

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

19

A166701

TUBE

ASSEMBLY - hitch valve sensing

1шт.

20

A161899

TUBE

ASSEMBLY - priority, Serial Range: valve-hitch

1шт.

23

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 3/8 tube 9/16-18 inch thread

1шт.

24

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- swivel, 3/8 tube 9/16-18 inch thread

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-144)

1шт.

26

A140575

HOSE

Priority Valve to Remote Valve

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 Degree Swivel, 3/4 Tube 1-1/16-20 thread

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 thread, Incl. Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (24 x 3 mm)

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-312)

1шт.
