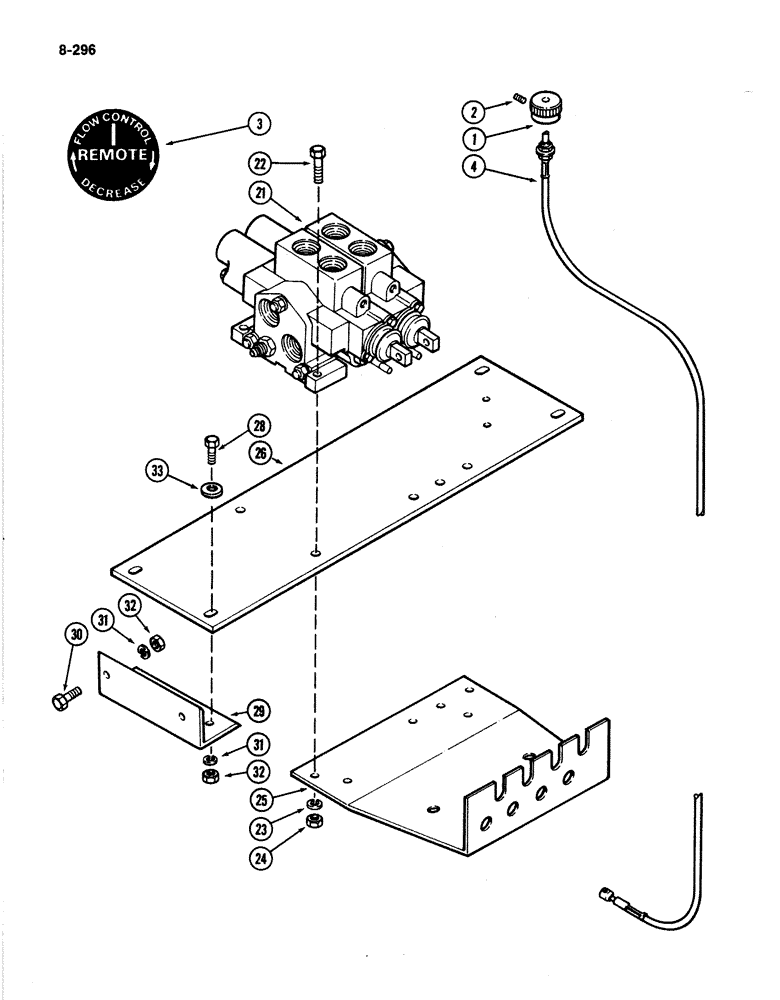

Запчасти Case IH 4894 (8-296) - REMOTE HYDRAULIC VALVE FLOW CONTROLS (08) - HYDRAULICS

A167630

PACKAGE, REPAIR

ATTACHMENT - Remote Flow (Machinery Item), Includes: Ref. 1 - 4

1шт.

1

A160814

KNOB

- flow control cable (Replaces A145805)

1шт.

2

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - socket head set, No. 10-32 x 1/4 Inch

1шт.

3

321-4129

DECAL

- control knob

1шт.

4

A161343

CABLE

- control knob to valve (Includes set screw)

1шт.

Refer to 4994 book, Figure 296, for spools, blocks and screws to connect Ref. 4 cable to the valve.

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, 2 circuit (See Figure 8-312), mounting

1шт.

22

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1 3/4", G5

3шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Remote hydraulic valve mounting 3/8"

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Remote hydraulic valve mounting 3/8"-16, G5

3шт.

25

A152128

BRACKET

- control cable, remote valve, hydraulic mounting

1шт.

2

A176093

PLATE ASSY.

PLATE - mounting, remote valve, hydraulic

1шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

29

A148390

BRACKET

ANGLE - support, mounting plate, remote hydraulic valve

2шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Remote hydraulic valve mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Remote hydraulic valve mounting 3/8"

8шт.

32

129103

ARM

NUT - hex, 3/8 inch NC, remote hydraulic valve mounting

8шт.

33

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm), remote hydraulic valve mounting

4шт.
