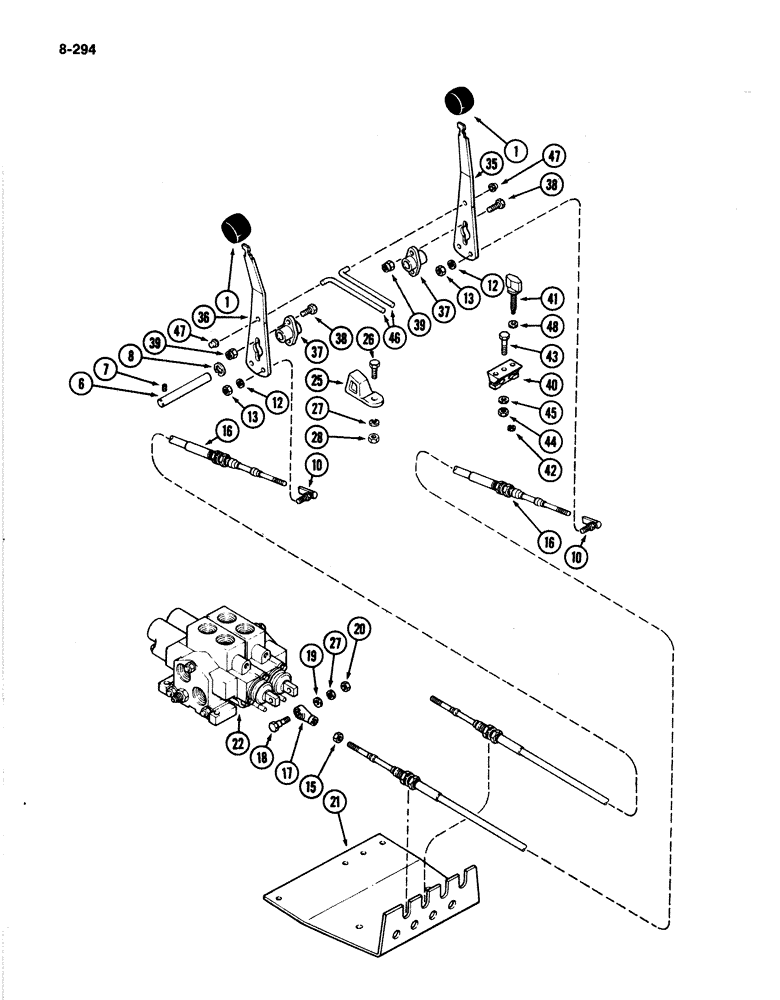

Запчасти Case IH 4894 (8-294) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A177435

BALL KNOB

KNOB - hand lever (Replaces A137806)

2шт.

6

A162326

SHAFT

-, Serial Range: lever-console

1шт.

7

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - headless socket set, 1/4 NC x 1/4 inch

1шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

10

A10329

BALL JOINT,1/4" - 28 x 1"

- control, Serial Range: cable-lever

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

6шт.

16

A152757

CABLE

- control

2шт.

P/N A152757; IF DLR STATES THAT HIS CABLE IS 75" LONG, YOU MAY CHECK P/N A165326 WHICH IS USED FOR THE 4994 TRACTOR(REF CASE#513387 FOR DLR 2334406-A W/ 4894 APPLICATION S/N 8865021).

1шт.

17

A146456

BALL

JOINT - control cable to valve spool

2шт.

18

A148510

BOLT

- shoulder, 1/4 inch NC

2шт.

19

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

6шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

21

A152128

BRACKET

- anchor, control cable

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic (See Figure 8-312)

1шт.

25

A141542

LEVER

TAB - lever, float position

2шт.

26

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

35

A166912

LEVER

- inner

1шт.

Ref #35A - A181264 Lever, Longer

1шт.

36

A166913

LEVER

- outer

1шт.

Ref #36A - A181265 Lever, Longer

1шт.

37

A162299

BEARING,15.95mm ID

- control lever pivot

2шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

39

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

40

A166866

BLOCK

- friction, remote lock

1шт.

41

A162958

BUTTON

KNOB - remote lock

5шт.

42

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, , knob #X18, .122" Dia, E-Type

2шт.

43

113-74

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- hex, 1/4 NC x 1-1/4 inch

2шт.

44

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

45

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 5/64 inch (7 x 16 x 2 mm)

2шт.

46

A166899

ROD

- remote lever lock

2шт.

47

S118721

NUT

- speed, 1/4 Inch, remote lever rod

2шт.

48

K651904

WASHER

- nylon

1шт.
