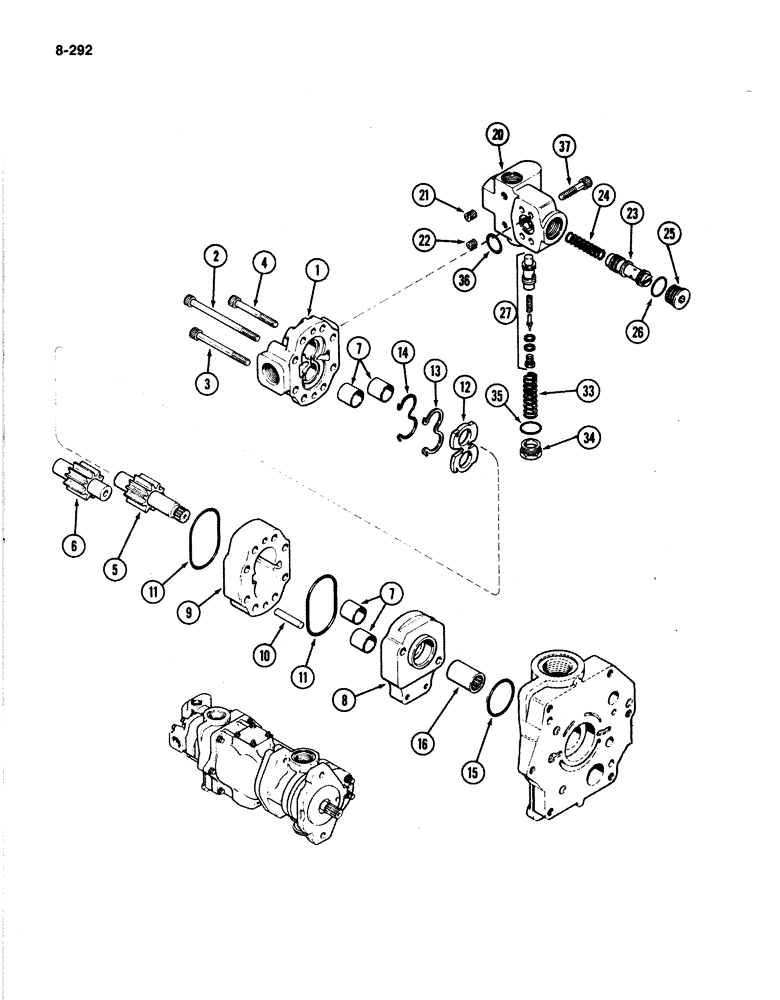

Запчасти Case IH 4894 (8-292) - TRIPLE HYDRAULIC PUMP ASSEMBLY, GEAR PUMP SECTION (08) - HYDRAULICS

A166506

PUMP

ASSEMBLY - Triple Hydraulic (See Note on Figure 8-284), Includes: Ref. 1 - 16

1шт.

A48145

PUMP

ASSEMBLY - gear, steering hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - cap, mounting

2шт.

3

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

4шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - gear shaft

4шт.

8

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

Part of Seal Gear Pump Kit, P/N A47643

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - rear

1шт.

Part of Seal Gear Pump Kit, P/N A47643

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

Part of Seal Gear Pump Kit, P/N A47643

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

Part of Seal Gear Pump Kit, P/N A47643

1шт.

15

F98069

O-RING

- gear pump to piston pump

1шт.

Part of Seal Gear Pump Kit, P/N A47643

1шт.

16

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump drive to piston pump

1шт.

A47643

SEAL

KIT - seal gear pump, Includes: ref. nos. 11 - 15

1шт.

A47642

VALVE

ASSEMBLY - flow divider, front steering, Includes: Ref. 20 - 37

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve (Reference No. A47646), front steering flow divider assembly

1шт.

Reference numbers in description are for CARES use only and can not be ordered separately

1шт.

21

221-1849

PLUG

- socket head, 1/8 inch PT, front steering flow divider assembly

1шт.

22

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT, front steering flow divider assembly

1шт.

23

A47647

SPOOL

- flow divider, front steering assembly

1шт.

24

A47648

SPRING

- flow divider spool, front steering assembly

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Front steering flow divider assembly Hex Soc, 3/4"-16 ORB

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 mm width), front steering flow divider assembly

1шт.

Part of Flow Divider Valve Seal Kit, P/N 47653

1шт.

27

A47882

SPOOL

ASSEMBLY - relief valve, front steering flow divider assembly

1шт.

33

A47651

SPRING

- relief valve, front steering flow divider assembly

1шт.

34

A47652

PLUG

ASSEMBLY - relief valve, front steering flow divider assembly

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 3/32 inch (19 x 2 mm), front steering flow divider assembly

1шт.

Part of Flow Divider Valve Seal Kit, P/N 47653

1шт.

36

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- valve to pump, front steering flow divider assembly

1шт.

Part of Flow Divider Valve Seal Kit, P/N 47653

1шт.

37

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW, , Front steering flow divider assembly Hex Soc Hd, M8 x 35, 12.9

4шт.

47653

SHIELD

KIT - seal, flow divider valve, Includes: ref. nos. 26, 35, and 36, front steering assembly

1шт.
