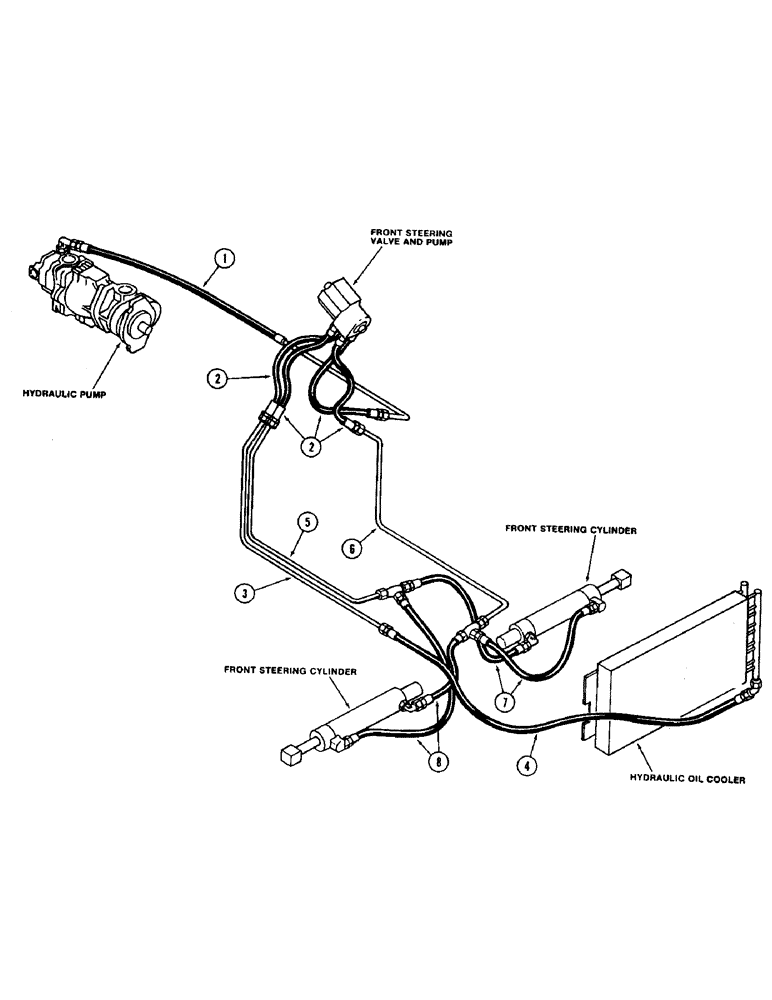

Запчасти Case IH 4894 (1-13) - PICTORIAL INDEX, FRONT STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Hydraulic pump to front steering pump and valve hose, Page 5-123

1шт.

2

Front steering valve and pump port hose, Page 5-123

1шт.

3

Steering valve to oil cooler return tube, Page 5-123, 8-281

1шт.

4

Oil cooler return to steering valve hose, Page 8-281

1шт.

5

Steering valve for right steering cylinder tube, Page 5-123

1шт.

6

Steering valve for left steering cylinder tube, Page 5-123

1шт.

7

Left steering cylinder hose, Page 5-123

1шт.

8

Right steering cylinder hose, Page 5-123

1шт.
