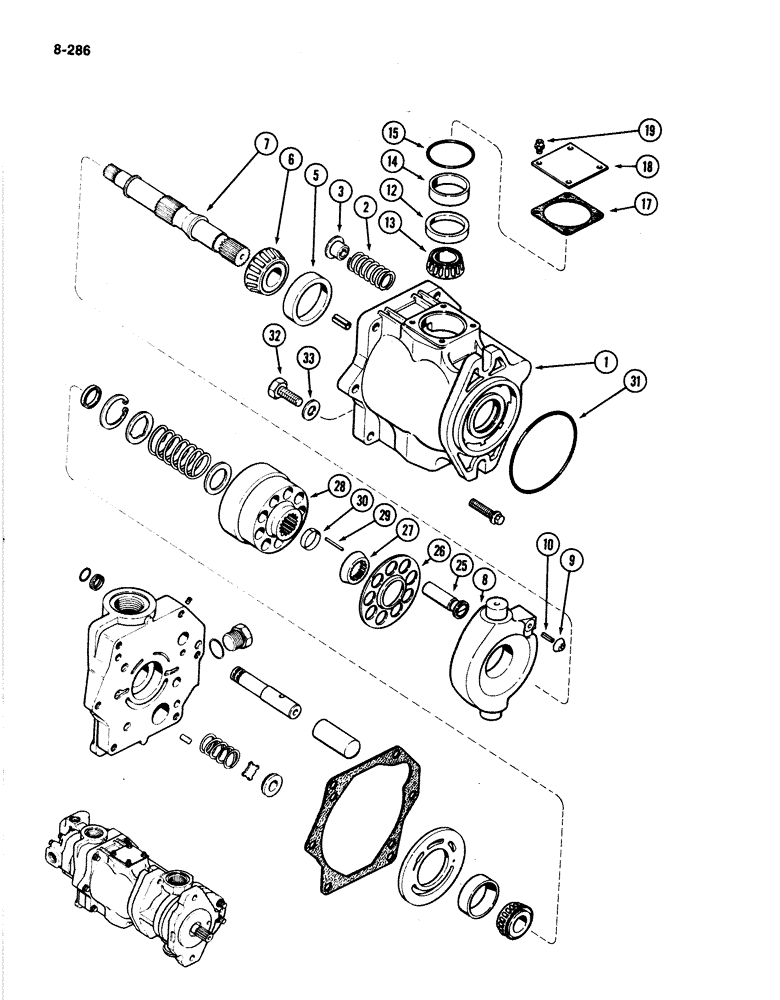

Запчасти Case IH 4894 (8-286) - TRIPLE HYDRAULIC PUMP ASSEMBLY, PISTON PUMP SECTION (08) - HYDRAULICS

A166506

PUMP

ASSEMBLY- triple hydraulic (See Note on Figure 8-284) (Continued from Figure 8-284), Includes: Ref. 1 - 33 and 35 - 63 on on fig. 8-288

1шт.

1

A47278

HOUSING

BODY - piston pump

1шт.

2

A47281

SPRING

- housing

1шт.

3

A49441

SEAT

- spring

1шт.

5

D59595

TAPERED BEARING

CUP - front bearing, 2-7/16 Inch (62 mm) O.D.

1шт.

6

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - front bearing, 1 inch (25 mm) (ID)

1шт.

7

A47634

SHAFT

- drive, piston pump

1шт.

8

A47284

YOKE

- swing

1шт.

9

A47283

SEAT

- spherical

1шт.

10

138-38

LOCK PIN,3/32" x 9/16", Slotted

Pin - Roll, 3/16 x 1/2 Inch

1шт.

12

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - yoke pivot bearing, 1-63/64 inch (50 mm) O.D.

2шт.

13

D53168

TAPERED BEARING

CONE - yoke pivot bearing

2шт.

14

A47286

SPACER

- Bearing

2шт.

15

A49435

O-RING

- cover, 2-1/4 inch (57 mm) ID

2шт.

Part of Seal and Gasket Kit, P/N A47567

1шт.

A47287

KIT

- shim, bearing, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (0.76 mm) (3 in kit) (Reference No. A47335)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (0.127 mm) (2 in kit) (Reference No. A47336)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.254 MM) (2 in kit) (Reference No. A47337)

1шт.

18

A47288

COVER

- housing

2шт.

19

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

25

A47334

PACKAGE

KIT - piston (includes 9 pistons and shoes)

1шт.

26

A47292

PLATE

- shoe, piston pump

1шт.

Part of Pump Repair Kit, P/N N8303

1шт.

27

A47293

WASHER

- spherical

1шт.

Part of Pump Repair Kit, P/N N8303

1шт.

28

A47295

BLOCK

- cylinder

1шт.

29

A47296

PIN

- cylinder block

3шт.

Part of Pump Repair Kit, P/N N8303

1шт.

30

A47297

SNAP RING,7.11mm Thk, Int

- pin

1шт.

Part of Pump Repair Kit, P/N N8303

1шт.

31

S5748

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- charge pump to piston pump

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

195-33

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 MM)

2шт.

A47567

KIT

- seal and gasket, Includes: ref. no. 15, See figure 8-290

1шт.

N8303

KIT

REPAIR KIT - pump, Includes: ref. nos. 26, 27, 29, 30 and parts on figure 8-286

1шт.
