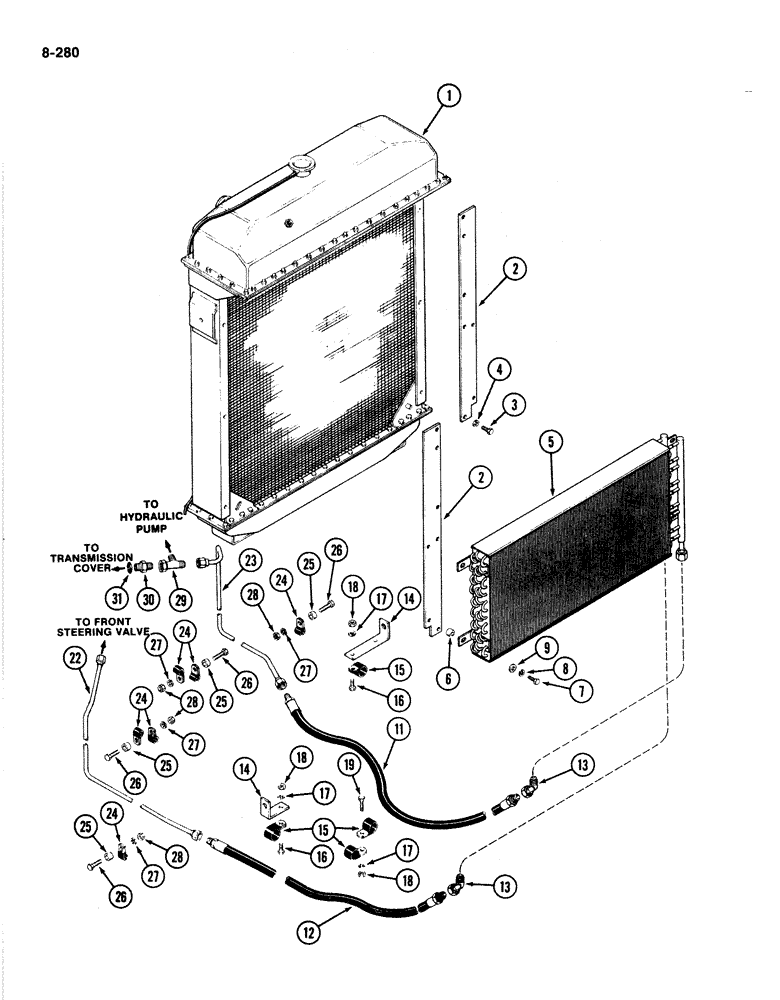

Запчасти Case IH 4894 (8-280) - HYDRAULIC OIL COOLER (08) - HYDRAULICS

1

REF

INSTRUCTION

RADIATOR - engine coolant (See Figure 2-2)

1шт.

2

A160167

SUPPORT

-, Serial Range: cooler-radiator

2шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

A151160

COOLER

- hydraulic oil

1шт.

6

A140434

BUSHING

SPACER - cooler mounting

4шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

11

A162282

HYDRAULIC HOSE,0.50" ID x 39.00", SAE 100R2 per SAE J517

- Return, Oil cooler 0.50" ID x 39.00", SAE 100R2 per SAE J517

1шт.

12

A162284

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R2 per SAE J517

- Inlet, Oil cooler 0.50" ID x 55.00", SAE 100R2 per SAE J517

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 1/2 tube x 3/4-16 thread

2шт.

14

A138761

SUPPORT

- hose clamp

2шт.

15

R14668

CLAMP

- tube

4шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

18

9635082

NUT,5/16" - 18, Gr 5

3шт.

19

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

BOLT - hex 3/8 NC x 1-1/4 inch, special

1шт.

22

A167004

TUBE ASSY.

TUBE - inlet hose, oil cooler

1шт.

23

A140427

TUBE

- return hose, oil cooler

1шт.

24

49838

CLAMP

- tube

6шт.

25

A140435

BUSHING

SPACER - clamp, 5/16 inch (8 MM) long

4шт.

26

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

CONNECTOR - swivel, 1/2 tube 3/4-16 inch thread

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2 tube 3/4-16 inch thread, Incl. Ref 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 x 2 mm)

1шт.
