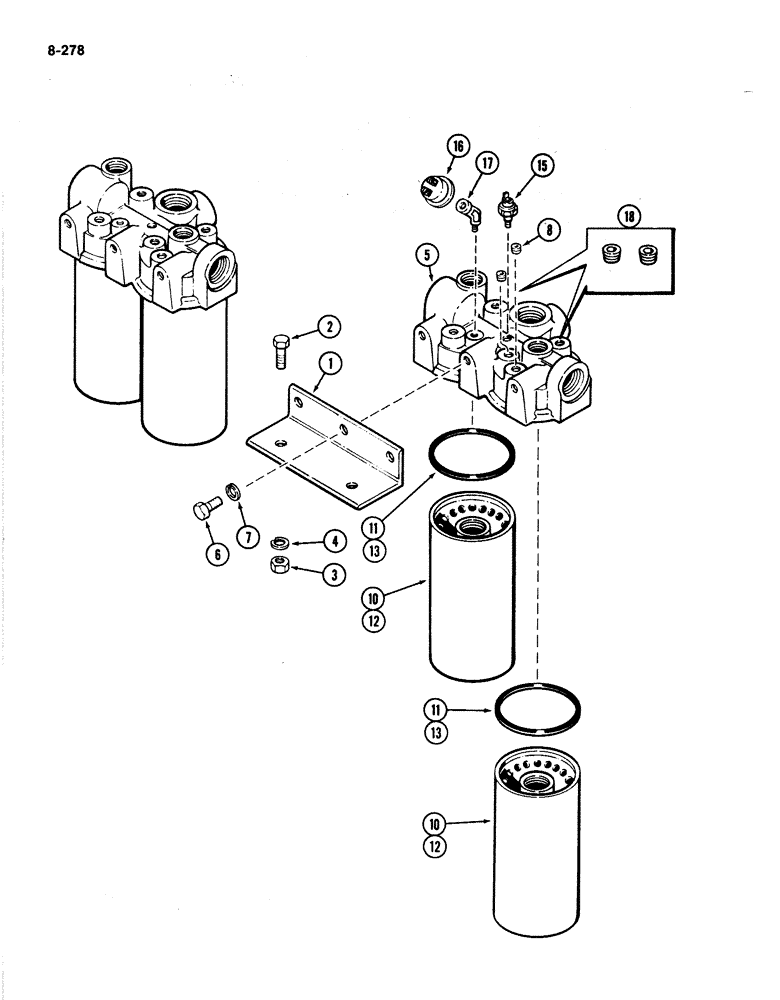

Запчасти Case IH 4894 (8-278) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

1

A137952

BRACKET

- filter mounting

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A143469

HOUSING

- filter

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/4 inch

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

A161846

FILTER

ELEMENT KIT - hydraulic filter, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 10-7/8 inch (276 mm) (Reference No. A161844)

2шт.

11

A139281

GASKET

- element

2шт.

A176594

HYDRAULIC OIL FILTER

ELEMENT KIT - hydraulic filter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 11-3/16 inch (284 mm) (Reference No. A169652)

2шт.

13

A139281

GASKET

- element

2шт.

15

A167895

SWITCH

- filter pressure sender

1шт.

16

A161461

SWITCH

- transmission differential

1шт.

17

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street, 1/8 inch PT

1шт.

18

221-841

PLUG

- hex socket, 1/4 inch PT (without PTO)

2шт.
