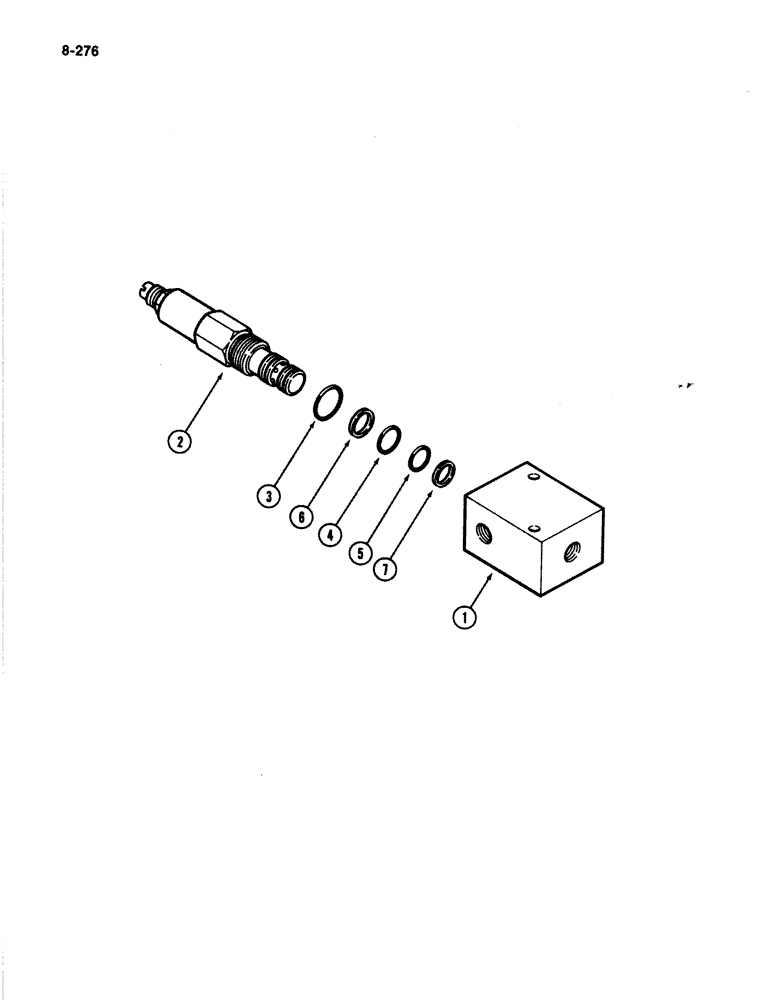

Запчасти Case IH 4894 (8-276) - OPERATOR SEAT CONTROL VALVE (08) - HYDRAULICS

A169536

VALVE

ASSEMBLY - seat control, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - seat control valve

1шт.

2

A48951

VALVE

Assembly - Pressure Reducing

1шт.

A48950

KIT

SEAL KIT - seat control valve (Order components), Includes: Ref. 3 - 7

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- pressure reducing valve, 5/8 inch (16 mm) O.D.

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- pressure reducing valve, 11/16 inch (17 mm) O.D.

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- pressure reducing valve, 1/2 inch (13 mm) O.D.

1шт.

6

L30012

RING

- teflon back-up

1шт.

7

T40181

RING

- teflon back-up

1шт.
