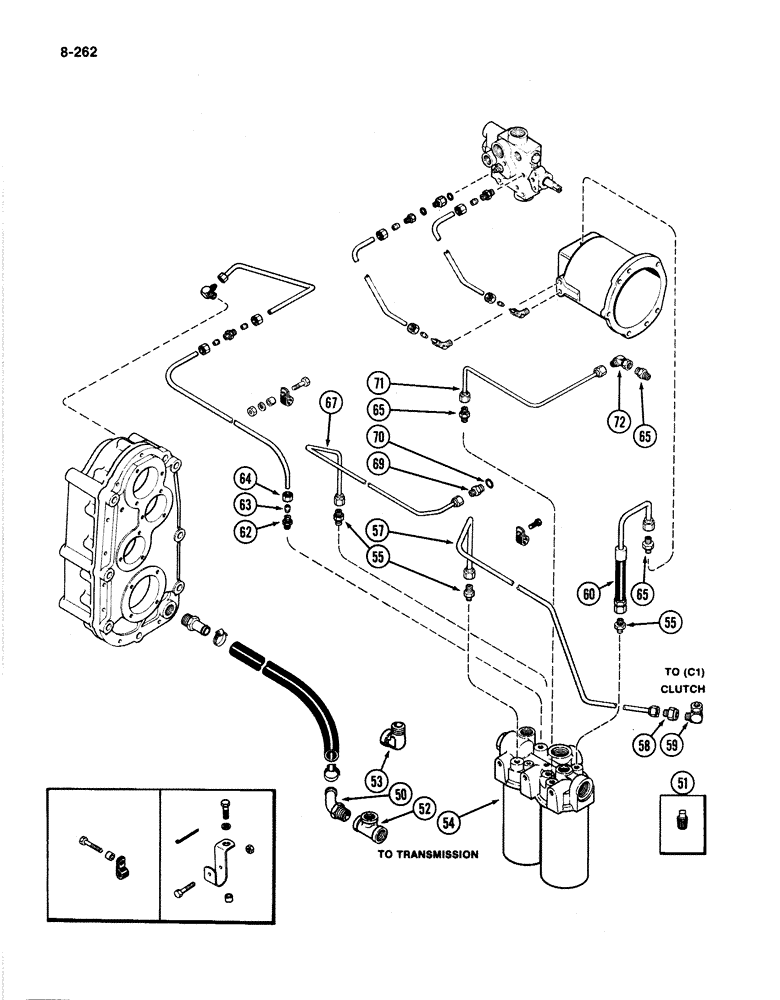

Запчасти Case IH 4894 (8-262) - PTO HYDRAULICS AND LUBRICATION TUBES (08) - HYDRAULICS

50

A76171

TUBE

- elbow (Continued from Figure 8-260)

1шт.

51

221-11

PLUG,Sq Hd, 1/8"-27

- square head pipe, 1/8 inch PT (without PTO)

1шт.

52

221-1695

TEE,Street, 1" NPT

- connector, 1 inch (with PTO)

1шт.

53

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degree, 1 inch PT (without PTO)

1шт.

54

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-278)

1шт.

55

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8 tube 9/16-18 thread x 1/4 inch PT

3шт.

57

A146890

TUBE

ASSEMBLY - (C1) clutch lubrication

1шт.

58

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 1/2 tube 3/4-16 thread to 3/8 tube 9/16-18 inch thread

1шт.

59

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 7/2 tube 3/4-16 inch thread

1шт.

60

A148033

TUBE

HOSE ASSEMBLY - PTO clutch lubrication

1шт.

62

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 63 and 64

1шт.

63

222-2611

SLEEVE

- flared, 3/8 inch tube

1шт.

64

222-2601

NUT

NUT - hex, 3/8 tube 7/32-24 inch thread

1шт.

65

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8 tube 9/16-18 thread x 1/4 inch PT

3шт.

67

A148817

TUBE

- (C3) clutch lubrication

1шт.

69

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube x 1/2 inch tube, Includes: Ref. 70

1шт.

71

A150252

TUBE

- transmission shaft lubrication

1шт.

72

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 tube 9/16-18 thread

1шт.

70

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 O.D. x 3/32 inch width (16 x 2 mm width)

1шт.
