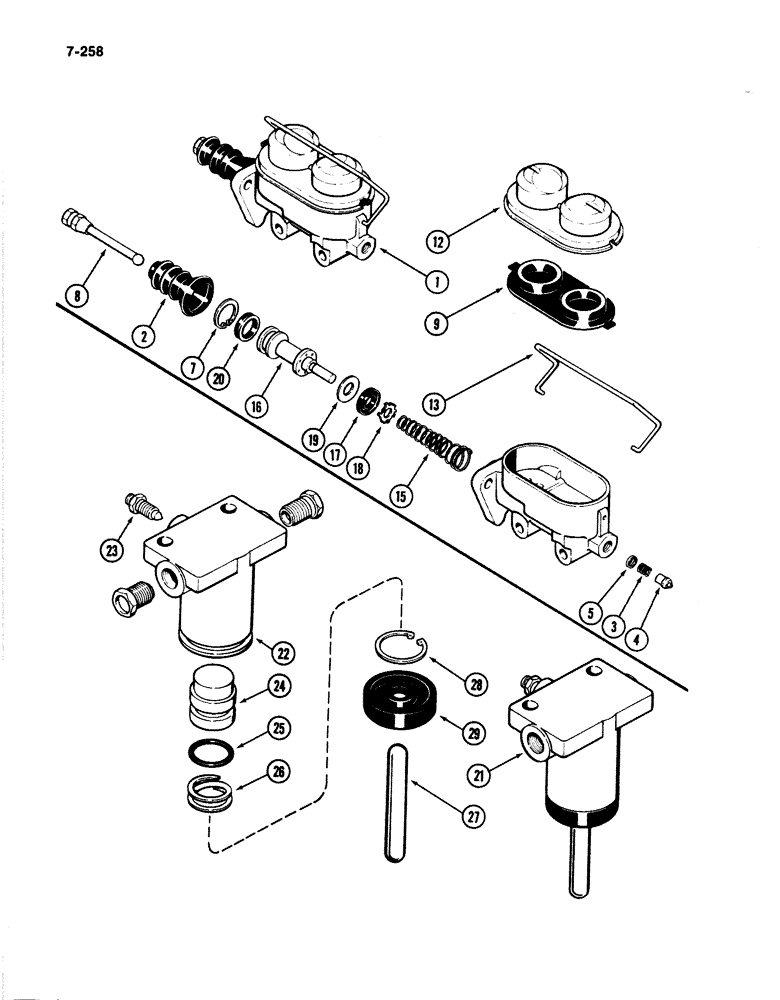

Запчасти Case IH 4894 (7-258) - BRAKE MASTER CYLINDER ASSEMBLY (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A169965
CYLINDER
ASSEMBLY - master brake, Includes: Ref. 2 - 20
1шт.
2
L32136
BOOT
- master cylinder
1шт.
3
N6824
SPRING
- piston
1шт.
4
A48980
BREATHER
VALVE - residual
1шт.
5
N6825
SEAT
- residual
1шт.
7
A15110
SNAP RING,0.812", Int, #81
Ring, Snap, 0.812", Int, #81
1шт.
8
L32137
ROD
- push
1шт.
9
A48981
GASKET
- cover
1шт.
12
A48982
COVER
- master cylinder
1шт.
13
N6831
BAIL
- cover retaining
1шт.
A48973
PISTON
KIT - master cylinder, Includes: Ref. 15 - 20
1шт.
15
NSS
NOT SOLD SEPARAT
SPRING - piston (Reference No. A48974)
1шт.
16
NSS
NOT SOLD SEPARAT
PISTON - master cylinder (Reference No. A48975)
1шт.
17
NSS
NOT SOLD SEPARAT
CUP - piston (Reference No. A48976)
1шт.
18
NSS
NOT SOLD SEPARAT
RETAINER - piston cup
1шт.
19
NSS
NOT SOLD SEPARAT
PROTECTOR - piston cup (Reference No. A48978), Includes: Ref. 20
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - piston sealing (Reference No. A48979)
1шт.
21
A51976
CYLINDER
ASSEMBLY - brake slave, Includes: Ref. 22 - 26
1шт.
22
NSS
NOT SOLD SEPARAT
BODY - brake slave cylinder (Order A51976) (Reference No. A42251)
1шт.
23
A41491
BLEEDER,1/4" - 28 x 23.37mm
- brake slave cylinder
1шт.
24
A45383
PISTON
ASSEMBLY - brake slave cylinder, Includes: Ref. 25 and 26
1шт.
25
L32132
O-RING,0.679" ID x 0.106" Width
- piston, brake slave cylinder
1шт.
Part of Cylinder Repair Kit, P/N A45387
1шт.
26
A42252
SEALING RING
RING - backup piston seal, brake slave cylinder
1шт.
Part of Repair Kit, P/N A45387
1шт.
27
A42254
ROD
- push, cylinder, brake slave
1шт.
Part of Cylinder Repair Kit, P/N A45387
1шт.
28
A42256
SNAP RING,0.901", Int, #90
brake slave cylinder 0.901", Int, #90
1шт.
Part of Cylinder Repair Kit, P/N A45387
1шт.
29
A45382
COVER
- brake slave cylinder rod
1шт.
Part of Cylinder Repair Kit, P/N A45387
1шт.
A45387
KIT
REPAIR KIT - cylinder, Includes: ref. nos. 25, - 29, brake slave
1шт.
Выбрано товаров: 32
