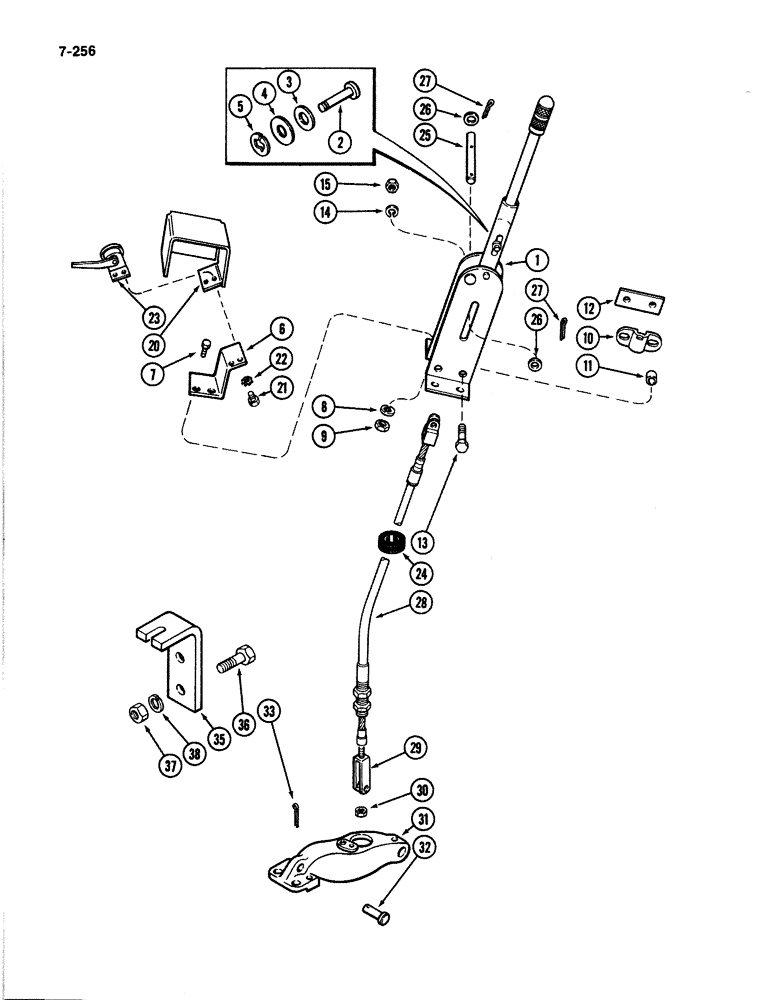

Запчасти Case IH 4894 (7-256) - PARKING BRAKE LINKAGE (07) - BRAKES

1

A161718

LEVER

ASSEMBLY - hand, park brake, Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

3

A55934

WASHER

- spring

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

5

A52207

RING - snap

1шт.

6

A169261

BRACKET

- switch, hand brake (Order A176408)

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A76109

CLAMP

-, Serial Range: cable-lever

1шт.

11

A31238

BUSHING

SPACER - clamp bolt

2шт.

12

A75745

BUSHING

SPACER - clamp

1шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

2шт.

20

A139933

COVER

- switch

1шт.

21

163-9

SCREW,Hex, #10 - 32 x 1/2"

- hex head machine No. 10-32 x 1/2 inch hex head

2шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal external shakeproof, 5/16 inch

2шт.

23

A33977

SWITCH

- warning light

1шт.

24

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

25

A161784

PIN

- clevis, cable to hand lever

1шт.

26

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

2шт.

27

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

28

A138977

CABLE

ASSEMBLY - control, park brake, Includes: Ref. 29

1шт.

29

A45085

CLEVIS

- cable to lever pin

1шт.

30

131-751

NUT - lock, 5/16 inch NF

1шт.

31

A154640

LEVER

- brake actuating

1шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

clevis to actuating lever 3/8" x 1 1/16"

1шт.

33

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

35

A166317

STRAP

BRACKET - stop, control cable

1шт.

36

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
