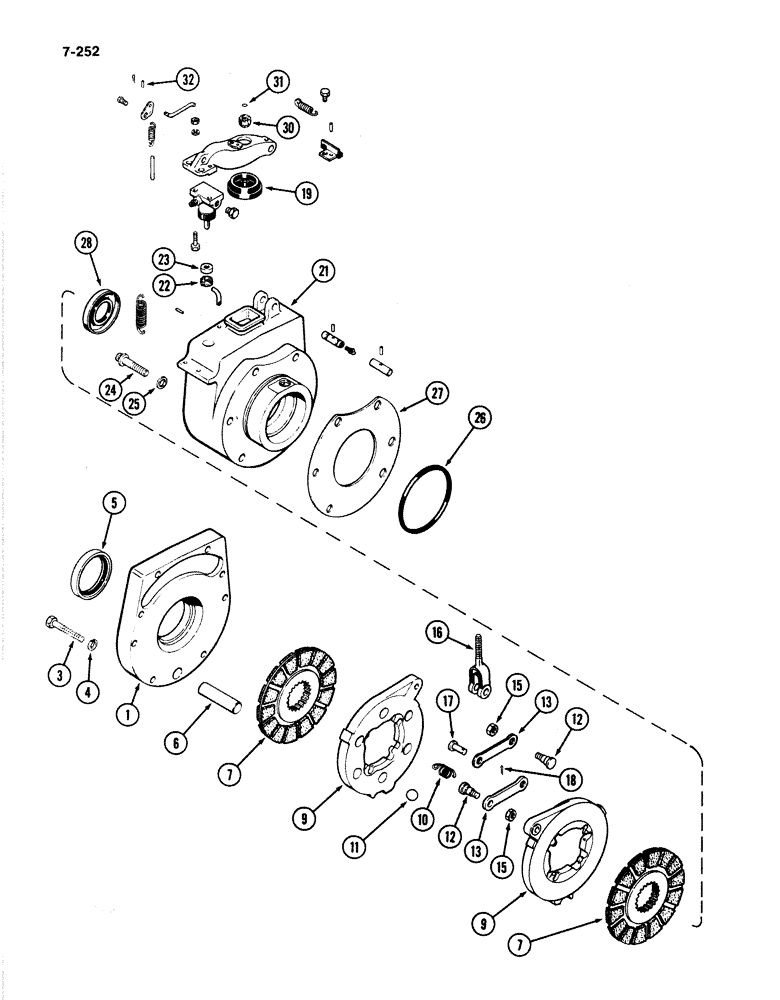

Запчасти Case IH 4894 (7-252) - TRANSMISSION BRAKE (07) - BRAKES

1

A136764

COVER

LEVER - brake actuating (Continued from Figure 7-250)

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

8шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

A136660

OIL SEAL

- oil, brake cover

1шт.

6

A136770

PIN

- support, brake assembly

1шт.

7

A153056

DISC

- brake (Includes lining)

2шт.

NSS

NOT SOLD SEPARAT

ACTUATOR ASSEMBLY - (Order components) (Reference No. A136766), Includes: Ref. 9 - 15

1шт.

9

A136772

DISC

- brake actuating

2шт.

10

A41864

SPRING

- tension

4шт.

11

211-223

BALL,1" Dia

- actuating, 1 inch (25 mm) diameter

6шт.

12

A136771

STEP BOLT

BOLT - shoulder, Serial Range: link-disk

2шт.

13

A136769

LINK

- straight, Serial Range: rod-disc

2шт.

15

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

16

A136767

ROD

- yoke, brake assembly to actuating lever

1шт.

17

141-57

CLEVIS PIN,5/8" x 1.610"

PIN - yoke, 5/8 inch (16 mm)

1шт.

18

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

19

A146418

COVER

- dust brake rod

1шт.

21

A157496

HOUSING

- brake assembly

1шт.

22

A30011

SEAL

- lube, inner

1шт.

23

A155602

SEAL

- outer, slave cylinder

1шт.

24

A60496

LOCK BOLT

BOLT - sealing, brake housing

6шт.

25

A64303

WASHER

- housing bolt

6шт.

26

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- housing seal

1шт.

27

A150782

SHIM

- housing to transmission, 0.007 inch (0.178 mm)

1шт.

27

A150780

SHIM

- housing to transmission, 0.003 inch (0.070 mm)

1шт.

27

A150781

SHIM

- housing to transmission, 0.005 inch (0.127 mm)

1шт.

28

A136659

OIL SEAL

- oil, brake housing

1шт.

30

A151674

NUT

- ratchet, Serial Range: rod-lever

1шт.

31

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- ratchet nut

1шт.

32

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (5 x 19 mm) 3/16" x 3/4", Slotted

1шт.
