Запчасти Case IH 4894 (7-250) - BRAKE PEDAL AND CYLINDER (07) - BRAKES

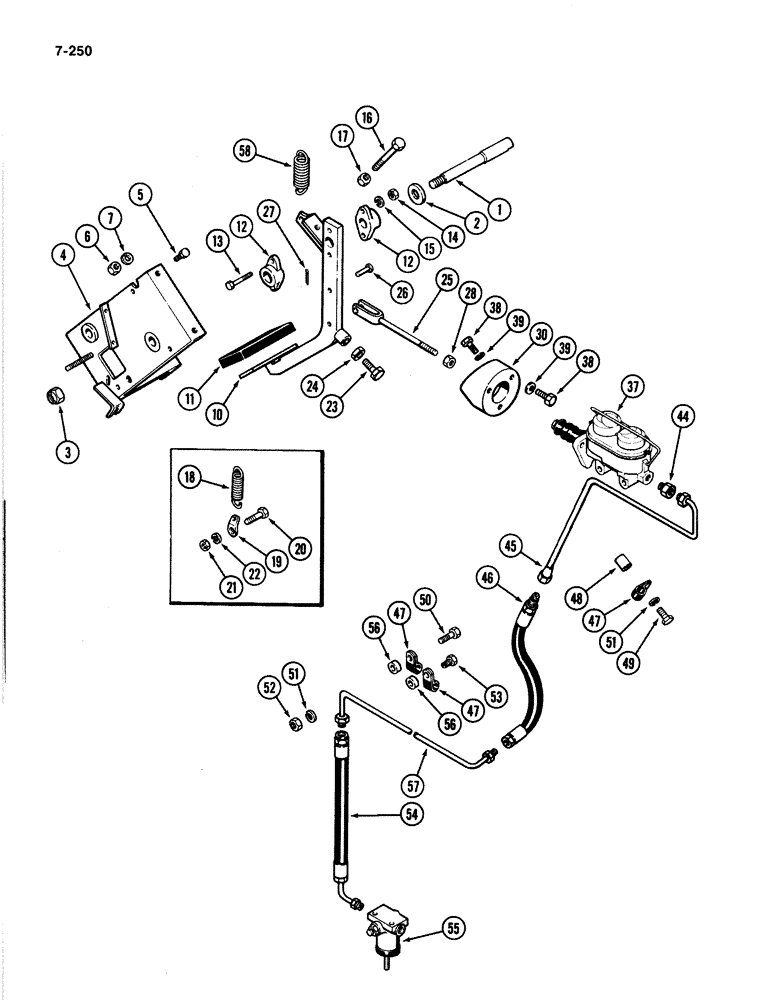

Схема запчастей Case IH 4894 - (7-250) - BRAKE PEDAL AND CYLINDER (07) - BRAKES
5
12
37
54
57
46
20
14
38
11
12
39
21
56
51
19
25
38
7
6
18
26
50
3
55
45
49
44
51
13
4
28
39
47
56
2
24
16
15
47
47
48
27
52
22
17
30
58
1
53
10
23

Артикул

Название

Примечание

Количество

1

A75373

SHAFT

- pivot, brake pedal

1шт.

2

A138830

BUSHING

SPACER - pedal

1шт.

3

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NC

1шт.

4

A177100

BRACKET

- control mounting (Replaces A167030)

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

A166485

PEDAL

- brake

1шт.

11

F9197

PAD

- foot, brake pedal

1шт.

12

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, brake pedal

2шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(Pedal return stop) Hex, 3/8"-16 x 3 3/4", G5

1шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

18

A20093

SPRING

- return, pedal, Start Serial: 8865744

1шт.

19

A26953

CLIP

- return spring (Order L50541), Start Serial: 8865744

1шт.

20

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Pedal down stop)

1шт.

24

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

A138827

ROD

- pedal to master cylinder

1шт.

26

141-12

CLEVIS PIN,3/8" x 1 5/16"

PIN - yoke, 3/8 inch

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

- hex jam, 3/8 inch NC

1шт.

230

A169966

TUBE NUT

ADAPTER - master cylinder

1шт.

37

REF

INSTRUCTION

CYLINDER - master (See Figure 7-258)

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

193-78

LOCK WASHER,3/8"

WASHER - lock, 3/8 inch

2шт.

44

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

FITTING - adapter, 1/4 and 5/16 inch tube

1шт.

45

A176383

TUBE

- master cylinder

1шт.

46

A176110

HOSE,6.35 mm ID x 356.00 mm

- Center (Replaces A176115) 6.35 mm ID x 356.00 mm

1шт.

47

49851

SHIELD

- tube

3шт.

48

A140442

BUSHING

SPACER - clamp, 1 inch (25 mm) long

1шт.

49

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

50

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

52

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

53

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - hex, self tapping, 3/8 inch

1шт.

54

A176109

HOSE

- slave cylinder

1шт.

55

A51976

CYLINDER

- slave (See Figure 7-258) (Replaces A62483)

1шт.

56

A140435

BUSHING

SPACER - clamp, 5/16 inch (8 mm) long

2шт.

57

A176115

TUBE

- center (Replaces A176110)

1шт.

58

A160874

SPRING

- return, pedal, Serial Range: -8865744

1шт.

Выбрано товаров: 45
