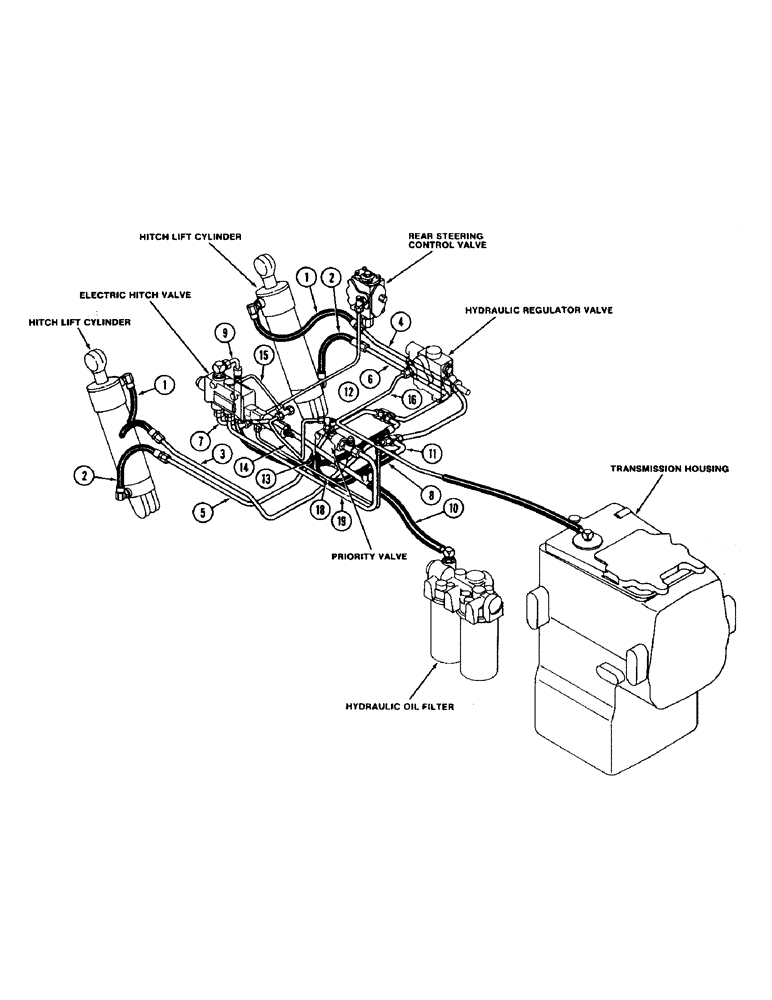

Запчасти Case IH 4894 (1-09) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Hitch cylinder upper hose, Page 8-337, 339

1шт.

2

Hitch cylinder lower hose, Page 8-337, 339

1шт.

3

Hitch cylinder right return tube, Page 8-337, 339

1шт.

4

Hitch cylinder left return tube, Page 8-337, 339

1шт.

5

Hitch cylinder right pressure tube, Page 8-337, 339

1шт.

6

Hitch cylinder left pressure tube, Page 8-337, 339

1шт.

7

Hitch valve drain tube, Page 8-333, 335

1шт.

8

Hitch valve drain hose, Page 8-337, 339

1шт.

9

Hitch valve pressure hose, Page 8-337, 339

1шт.

10

Hitch drain hose, Page 8-333, 335

1шт.

11

Return line junction tube, Page 8-337, 339

1шт.

12

Hitch valve to steering valve tube, Page 5-127, 129

1шт.

13

Priority valve to hitch valve tube, Page 8-299, 301

1шт.

14

Hitch valve sensing tube, Page 8-299, 301

1шт.

15

Regulator valve tube to transmission cover tube, Page 8-271

1шт.

16

Regulator valve drain hose, Page 8-271

1шт.

17

Hitch valve drain tube, Page 5-127, 129

1шт.

18

Hitch valve to priority valve hose, Page 8-299, 301

1шт.
